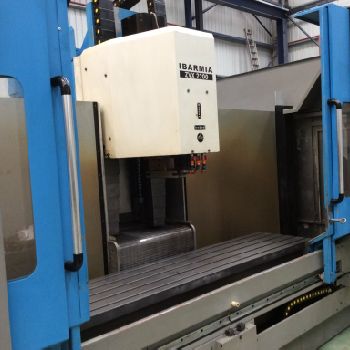

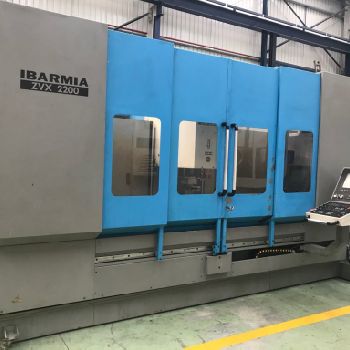

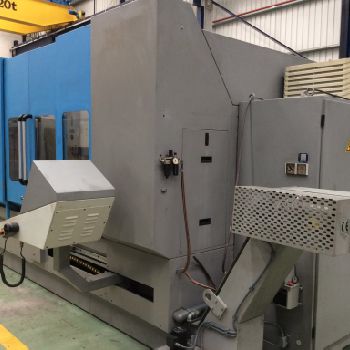

Ibarmia ZVX 2200 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Vertical Machining Centers |
| Manufacturer: | Ibarmia |
| Model: | ZVX 2200 |
| Description: | HEIDENHAIN control | Longitudinal stroke X 2200 m | Cross stroke Y 500 mm | Vertical travel Z 500 mm | Dimensions of the table 2500x500 mm | Max. admissible 3000 kgs | Number of tools 40 | Spindle cone BT 40 | Head speed 6500 rpm | Electronic steering wheel | Chip extractor | Optical rules | Weight 8000kgs |
| Technical Specifications: | Axis X: 2200.0 mm Axis Y: 500.0 mm Axis Z: 500.0 mm Rotary table (4th axis): no Type of CNC: Heidenhain Table length: 2500.0 mm Table width: 500.0 mm Max. part weight: 3000.0 kg Number of tool pockets: 40.0 Spindle taper: BT 40 Max. spindle speed: 6500 rpm Length x width x height: - × - × - Weight: 8000.0 kg State: good At local norms: --------- Status: under power |
