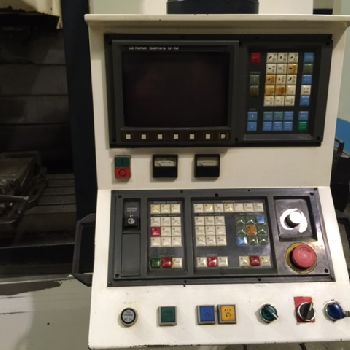

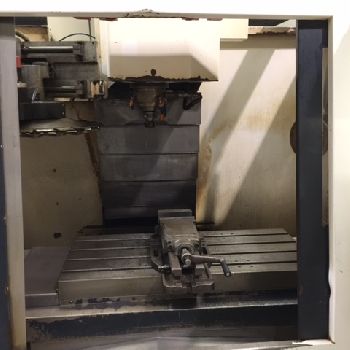

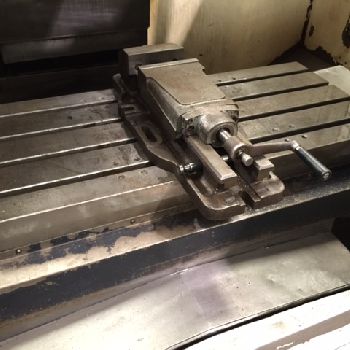

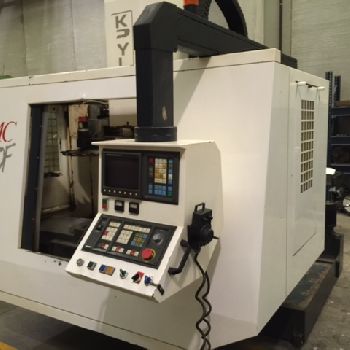

Kryle VMC 700 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Vertical Machining Centers |
| Manufacturer: | KRYLE |
| Model: | VMC 700 |
| Description: | Vertical Machining Centre Kryle Model VMC 700 With Numerical Control System Fanuc OM|Control: FANUC OM |X Axis table travel: 700 mm |Y Axis travel: 450 mm |Z Axis travel: 450 mm |Spindle nose to table: 85-535 mm |Spindle centre to column: 460 mm |Table size: 1000x480 mm |Maximum table load: 1000 kg |Automatic tool change type: Armless |Number of tools: 20 |Motor speed range (rpm): 80-8000 |Shank type: BT 40 |Front bearing diameter: 90mm |Rapid traverse X,Y,Z: 30M per minute |Cutting feed rate: 1-30.000 mm per minute |Manual feed rate: 1-1260 mm per minute |T slot spec. width x No x pitch: 18mm x 4 x 100mm |Maximum tool diameter: 110 mm |Maximum tool length: 250 mm |Maximum tool weight: 4 kg |Tool to tool time: 5 seconds |Chip to chip time: 9 seconds |Pull stud type: MAS 403-1 |Motor Main spindle drive: AC 12P |X&Y axis motors: 7,5 Kw |Z axis motor: 5S/1,2 kw |Motor Tool changer: 3,0 S |Machine height: 2560mm x 2400mm x 2150mm |Machine weight: 3900Kg |CE |
| Technical Specifications: | Axis X: 700.0 mm Axis Y: 450.0 mm Axis Z: 450.0 mm Rotary table (4th axis): no Type of CNC: Fanuc OM Table length: 1000.0 mm Table width: 480.0 mm Max. part weight: 1000.0 kg Number of tool pockets: 20.0 Spindle taper: BT40 Max. spindle speed: 8000 rpm Length x width x height: 2560.0 mm × 2400.0 mm × 2150.0 mm Weight: 3900.0 kg State: good At local norms: yes |
