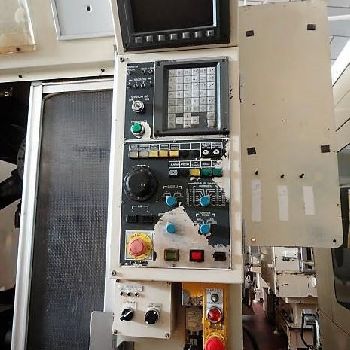

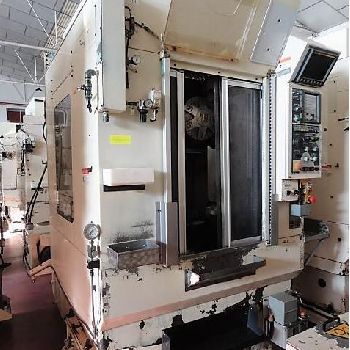

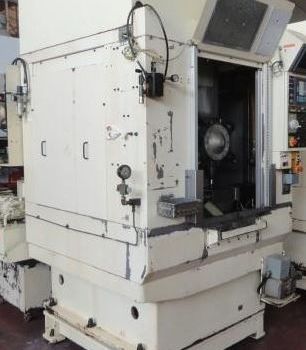

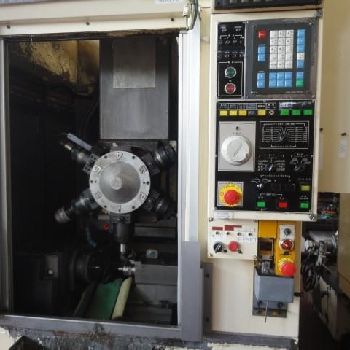

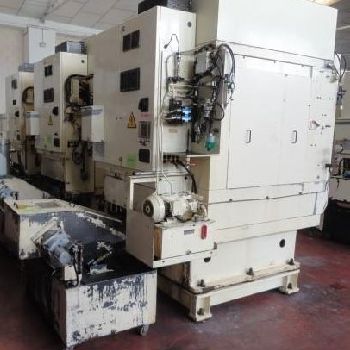

Kira KN-6V vertical machining center
$ 7,960
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Vertical Machining Centers |
| Manufacturer: | Kira |
| Model: | KN-6V |
| Description: | Travel |X axis: 300 mm. |Y axis: 250 mm. |Z axis: 300 mm. |Distance from the tip of the head to the surface of the table: 200 - 500 mm. |Distance from the center of the head to the surface of the column: 365 mm. |Working area of the table: 500 x 350 mm. |Maximum load allowed on the table: 500 kg. |Head speed (low x medium x high): 120 x 240 x 300 |Fast forward: 24000 mm / min. |Cutting feed: 1 - 10000 mm / min |No. of tools: 6 |Max diameter of the tool: 100 mm. |Max tool length: 250 mm. |Max weight of the tool: 3 kg. |Tool selection: Random |Tool change time (from T to T): 1 second |Tool change time (from C to C): 3.5 seconds |Head motor: AC 3.7 kW. (15 min) / 2.2 kW (continuous) |Shaft motor: AC 0.75 kW. (X, Y) / AC 1.0 kW. (Z) |Power supply: AC 200/220 V 10%, 50/60 Hz, 9 kVA |Air supply: 0.4 MPa (4 kg / cm), 100 L / min. |Dimensions of the machine (Length x Width x Height): 2350 x 1350 x 2365 mm |Weight of the machine: 2200 kg. |Positioning: 0.01 mm. (all the |
| Technical Specifications: | Axis X: 300.0 mm Axis Y: 250.0 mm Axis Z: 300.0 mm Rotary table (4th axis): no Type of CNC: Fanuc Table length: 500.0 mm Table width: 350.0 mm Max. part weight: 500.0 kg Number of tool pockets: 6.0 Max. spindle speed: 300 rpm Spindle motor power: 3.7 kW Length x width x height: 2350.0 mm × 1350.0 mm × 2365.0 mm Weight: 2200.0 kg State: good At local norms: --------- |
