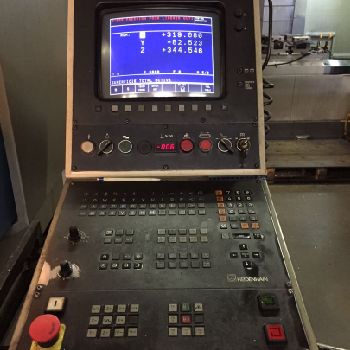

IBARMIA ZVX 3000 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Vertical Machining Centers |
| Manufacturer: | Ibarmia |
| Model: | ZVX 3000 |
| Year of Make: | 1997 |
| Description: | Year 1997 |C.N.C. Heidenhain |Table dimensions 3000x500 mm |Longitudinal stroke 2920 mm |Transverse stroke 500 mm |Vertical stroke 400 mm |Spindle speed 5000 rpm |ISO 40 spindle cone |Number of tools 24 |Motor power 32 KW |Dimensions 6700x2900x2700 mm |Weight 10000 Kg |
| Technical Specifications: | Axis X: 2920.0 mm Axis Y: 500.0 mm Axis Z: 400.0 mm Rotary table (4th axis): no Type of CNC: Heidenhain Table length: 3000.0 mm Table width: 500.0 mm Spindle taper: ISO 40 Max. spindle speed: 5000 rpm Spindle motor power: 32.0 kW Length x width x height: 6700.0 mm × 2900.0 mm × 2700.0 mm Weight: 10000.0 kg State: good At local norms: --------- |
