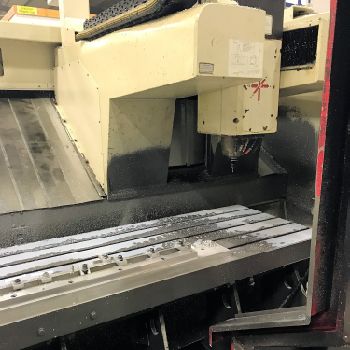

Hedelius C80-2300 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Vertical Machining Centers |
| Manufacturer: | Hedelius |
| Model: | C80-2300 |
| Year of Make: | 2004 |
| Description: | Swarf Conveyor, Coolant, Interlocked guards, Low Volt Light |Control Heidenhain TNC530 |Maximum workpiece weight 2 x 1400kg |Table Size 2 off 750 x 1400mm |Traverses XYZ 2340 x 800 x 600mm |Rapid Feedrates 40m/minute |Min - Max Height under Spindle 140 - 740mm |Spindle Motor Power 29kW |Spindle Speed 6000rpm |Tool Change Capacity 30 Station |Tool Size DIN40 |Machine Weight 1300kg |
| Technical Specifications: | Axis X: 2340.0 mm Axis Y: 800.0 mm Axis Z: 600.0 mm Rotary table (4th axis): no Type of CNC: Heidenhain TNC530 Table length: 1400.0 mm Table width: 750.0 mm Max. part weight: 1400.0 kg Number of tool pockets: 30.0 Spindle taper: DIN 40 Max. spindle speed: 6000 rpm Spindle motor power: 29.0 kW Length x width x height: - × - × - Weight: 1300.0 kg State: good At local norms: --------- |
