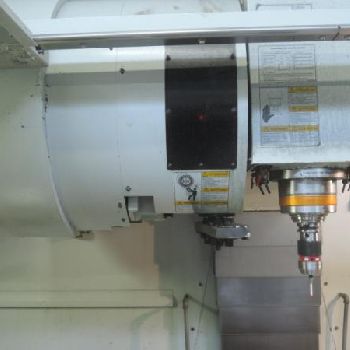

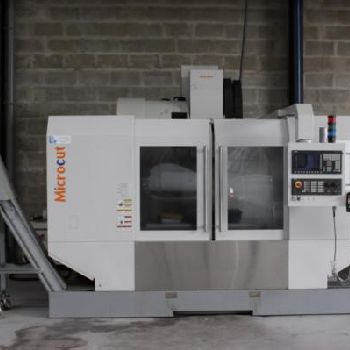

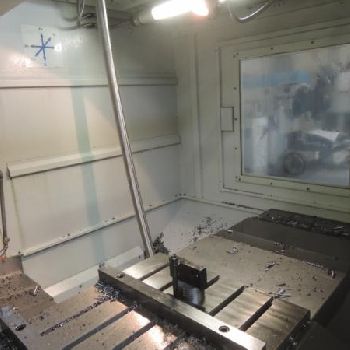

Microcut VM1000 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Vertical Machining Centers |
| Manufacturer: | Microcut |
| Model: | VM1000 |
| Description: | SIEMENS 828D Digital Control |Surface of the table 1300 x 600 mm |Longitudinal stroke X axis 1000 mm |Y-axis transverse stroke 600 mm |Z axis vertical stroke 570 mm |Prismatic guide type |Distance spindle nose / table surface 115 to 685 mm |Height of the table with respect to the ground 880 mm |Grooves (width x spacing x number) 18 x 100 x 5 mm |Allowable weight on the table 800 kg |Speed of the spindle 10000 rpm |ISO 40 spindle cone |Spindle motor 11/15 Kw |Fast feeds (X / Y / Z) 24 m / min |Work feeds (X / Y / Z) 10 m / min |Arm store type |Number of tools 24 |Max. Tool diameter 75 mm |Max. Tool length 300 mm |Max. Tool weight 8 kg |Installed power 35 Kw |Year 2016 |
| Technical Specifications: | Axis X: 1000.0 mm Axis Y: 600.0 mm Axis Z: 570.0 mm Rotary table (4th axis): no Type of CNC: SIEMENS 828D Table length: 1300.0 mm Table width: 600.0 mm Max. part weight: 800.0 kg Number of tool pockets: 24.0 Spindle taper: ISO 40 Max. spindle speed: 10000 rpm Spindle motor power: 15.0 kW Length x width x height: 3300.0 mm × 2900.0 mm × 2800.0 mm Weight: 5500.0 kg State: good At local norms: --------- |
