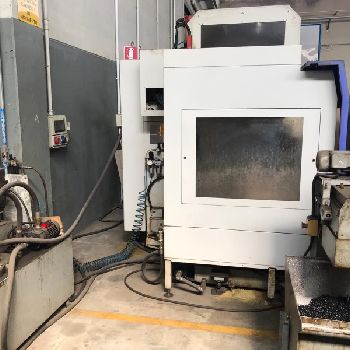

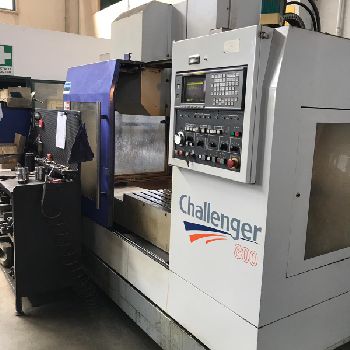

Microcut CHALLENGER MCV 800 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Vertical Machining Centers |
| Manufacturer: | Microcut |
| Model: | CHALLENGER MCV 800 |
| Year of Make: | 2002 |
| Description: | Year built: 2002; installation 2004. DIN 69871, Line |new chuck, new bearings, 2 transmission belts, high pressure 20 bar, |Ronda Renishaw, Prismatic Guides.|TABLE |Table dimensions 1000x460 mm |CAPACITY |Travel axis x longitudinal 800 mm |Transverse y-axis travel 450 mm |Vertical z-axis travel 500 mm |SPINDLE |Spindle connection 40-69871 ISO |Rotation speed 10,000 rpm |Motor power 7,5 Kw |TOOL MAGAZINE |Tool holders 24 nr. |

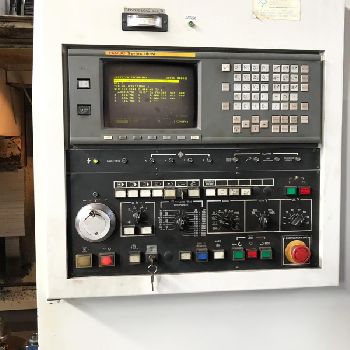

| Technical Specifications: | Axis X: 800.0 mm Axis Y: 450.0 mm Axis Z: 500.0 mm Rotary table (4th axis): no Type of CNC: FANUC 18M Table length: 1000.0 mm Table width: 460.0 mm Number of tool pockets: 24.0 Spindle taper: 40-69871 ISO Max. spindle speed: 10000 rpm Spindle motor power: 7.5 kW Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
