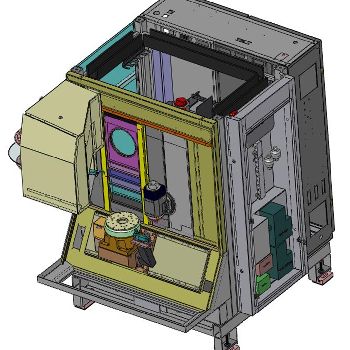

Willemin-Macodel Sa 508S Machining center - 5 axis
$ 675,779
| Type: | Buy-It-Now |
| Location: | Russia |
| Category: | CNC Machining Centers |
| Manufacturer: | Willemin-Macodel |
| Model: | 508S |
| Year of Make: | 2016 |
| Description: | BASE MACHINE|Design|The bed and the main structural elements, cast from nodular cast iron, are closed sections with built-in stiffeners, which guarantees high static and dynamic performance, as well as high rigidity. |The bed is fixed at three points of the structural frame, on which the tool magazine, electrical cabinet, full fence and other nodes are also attached. |A full chip guard provides a separation between the working area and the mechanical components of the machine. |Safe access to the various units of the machining center through the sliding door from the front, as well as through the doors located behind and on the left side. |The turning CNC stand is located on the left side of the front of the machine. |Linear axis |Longitudinal movement, X axis: 450 mm. Cross movement, Y axis: 200 mm. Vertical movement, Z axis: 425 mm. |- max. feed speed: 40 m / min. |- effort: 3600 N. |Direct measurement with a high precision ruler. |Resolution: 0.0001 mm (0.1 m).|Swivel axis |
| Technical Specifications: | Axis X: 450.0 mm Axis Y: 200.0 mm Axis Z: 425.0 mm Type: Vertical Type: Continuous CNC: FANUC 31i B5 Table length: 320.0 mm Table width: 320.0 mm Max. part weight: 85.0 kg Number of tool pockets: 48.0 Max. spindle speed: 42000 rpm Spindle motor power: 15.0 kW Number of pallets: 0.0 Length x width x height: 2225.0 mm × 1959.0 mm × 2141.0 mm Weight: 2800.0 kg Worked hours: 1 hours Hours under power: 1 hours State: new At local norms: --------- Status: packed |
