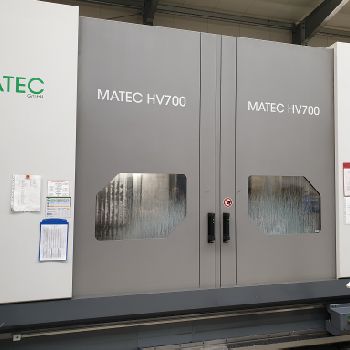

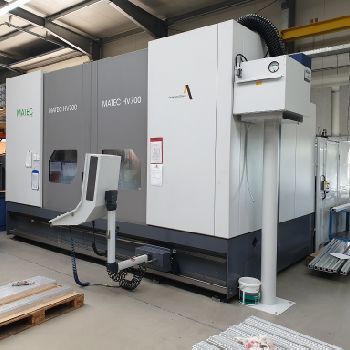

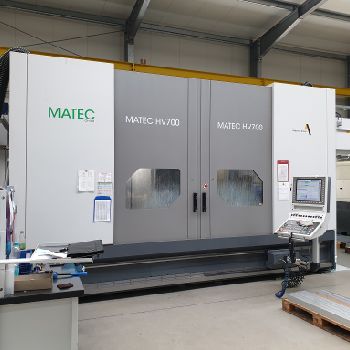

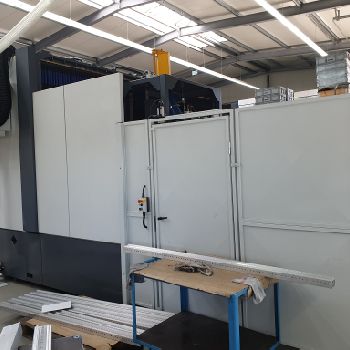

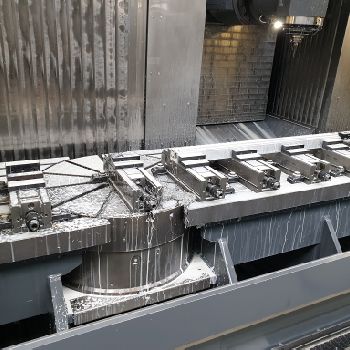

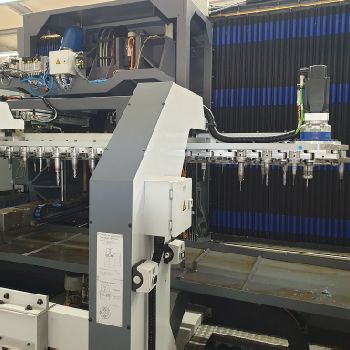

Matec HV 700 Machining center - 5 axis
$ 390,681
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Machining Centers |
| Manufacturer: | Matec |
| Model: | HV 700 |
| Year of Make: | 2017 |

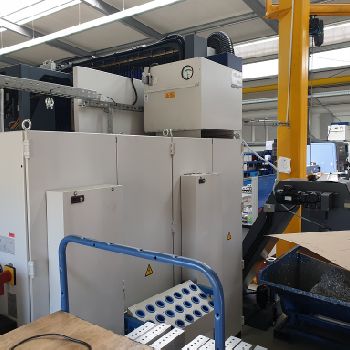

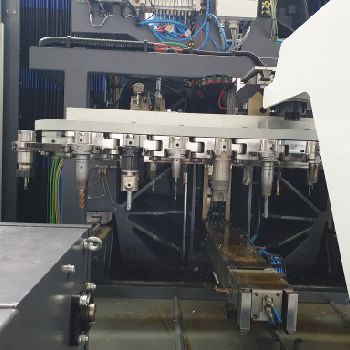

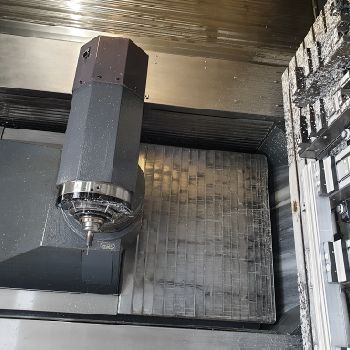

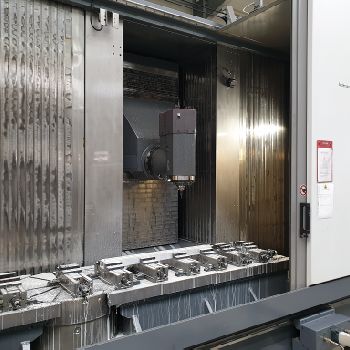

| Description: | 5-axis machining center with turning function |Manufacturer: Matec |Type: HV 700 |Year of construction: 2017 |Control: Heidenhain TNC640|X-way: 2600 mm |Y-way: 700 mm |Z-way: 950 mm / horizontal |Z-way: 900 mm / vertical |NC swivel head stepless: +/- 105 degrees |Spinel cone: HSK 63 |Spindle power: 41 kW at 40% ED, 31 kW at 100% ED |Spindle torque: 195 Nm at 40% ED, 150 Nm at 100% ED |Spindle speeds: 20-15,000 rpm |Tool changer: 50 Pl. |IKZ: 40 bar|NC rotary table |torque drive |Installation position faceplate: horizontal |Speed max .: 700 1 / min |Faceplate diameter: 750 mm |Torque in round milling: 2000 Nm |Permanent moment max. (S1): 1100 Nm |Tangential torque with clamping: 4000 Nm |Transport load max.:2000 kg |Including direct measuring system |Partial accuracy: +/- 2.5 "|Direct position measuring system X-, Y-, Z-axis, chip conveyor, flushing gun, oil central lubrication, working room lighting LED, electronic handwheel (portable), partition for double-axis |
| Technical Specifications: | Axis X: 2600.0 mm Axis Y: 700.0 mm Axis Z: 950.0 mm Type: Vertical CNC: Heidenhain TNC640 Type of axis: Universal head Max. part weight: 2000.0 kg Number of tool pockets: 50.0 Spindle taper: HSK 63 Max. spindle speed: 15000 rpm Length x width x height: - × - × - Weight: - State: excellent At local norms: yes Status: visible |
