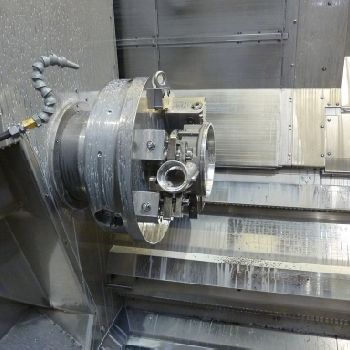

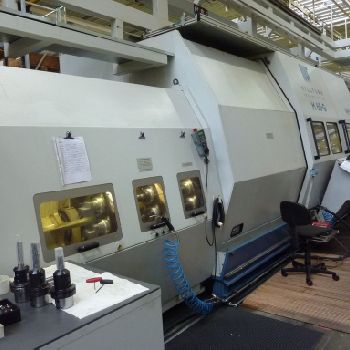

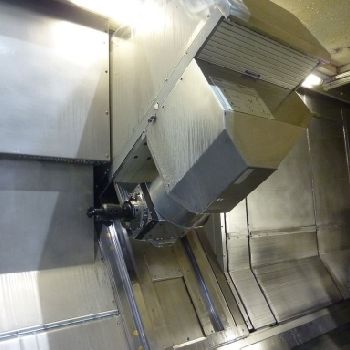

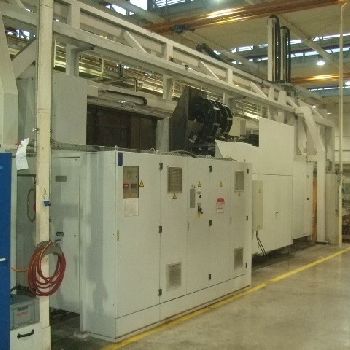

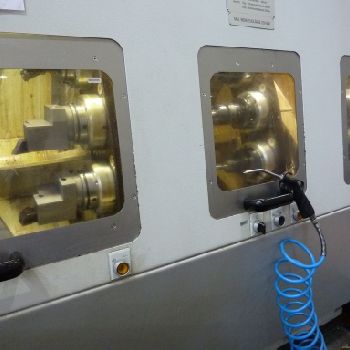

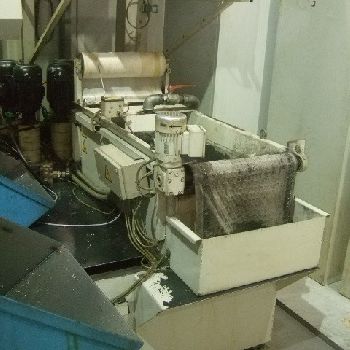

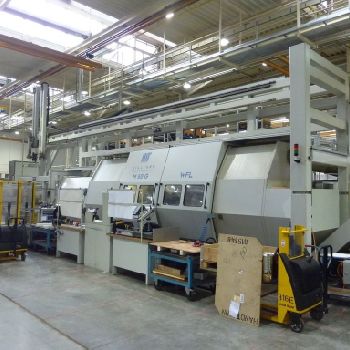

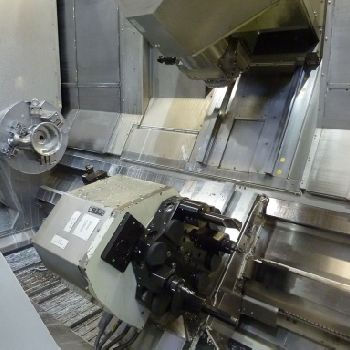

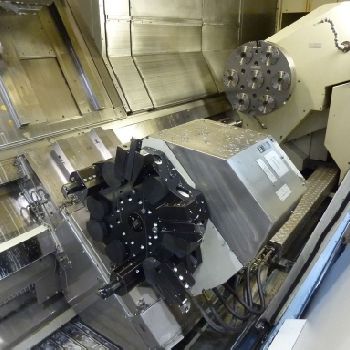

WFL Millturn M 60-G x 3000 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Machining Centers |
| Manufacturer: | WFL |
| Model: | Millturn M 60-G x 3000 |
| Year of Make: | 2001 |
| Description: | Max. Turning length 3,000 mm |Max. Circumference diameter over bed sled 670 mm |Max. Circumference diameter over bed carriage with coupling device 600 mm |Spindle head DIN 55026 form A Gr. 11 |Spindle diameter in the front / rear bearing 160/150 mm |Spindle bore 115 mm |Drive power (100% E.D.) 40 KW |Torque at the spindle (stage 1/2) 1,830 / 458 Nm |Speed range in 2 stages 8 - 825/33 - 3.300 rpm. |Spindle head DIN 55026 form A Gr. 11 |Spindle diameter in the front / rear bearing 160/150 mm |Spindle bore 115 mm |Drive power (100% E.D.) 40 KW |Torque at the spindle (stage 1/2) 1,830 / 458 Nm |Speed range in 2 stages 8 - 825/33 - 3.300 rpm. |Three-phase servo drive (AC) |Feed force along (Z-axis) / plan (X-axis) 2,000 / 2,000 daN |Rapid traverse longitudinal / flat 20/15 m / min |Longitudinal stroke (Z-axis) 3,150 mm |Planing stroke (X-axis) 700 (+ 670 / -30) mm |Three-phase servo drive (AC) |Feed force along (Z-axis) / plan (X-axis) 2,000 / 1,000 daN |Rapid traverse |

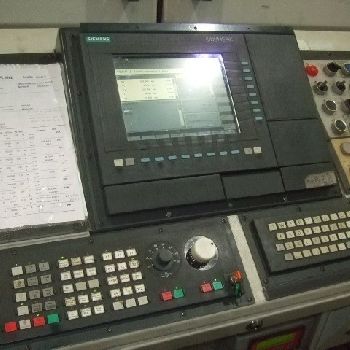

| Technical Specifications: | Axis X: 280.0 mm Axis Z: 2920.0 mm Type: Horizontal CNC: SIEMENS - SINUMERIK 840 D Number of tool pockets: 30.0 Max. spindle speed: 4000 rpm Spindle motor power: 25.0 kW Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
