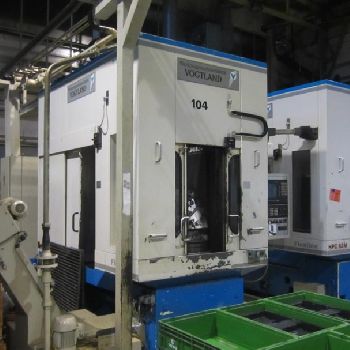

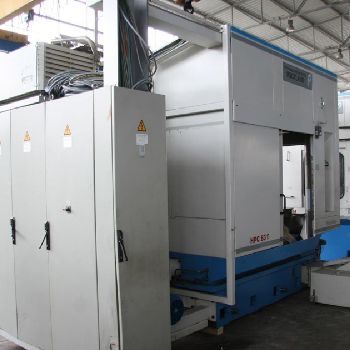

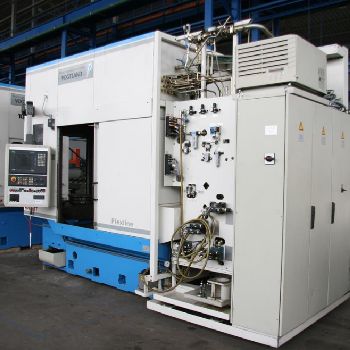

Werkzeugmaschinenfabrik Vogtland Gmbh HPC 63 T - Horizontal 4-Axis CNC Machining Center
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Horizontal Machining Centers |
| Manufacturer: | VOGTLAND |
| Model: | HPC 63 T - 4 Axis |
| Year of Make: | 1999 |

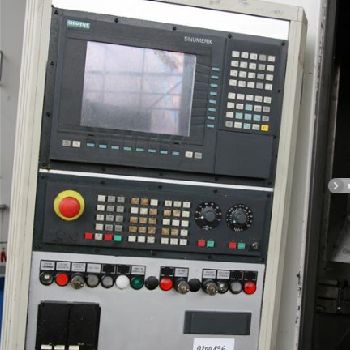

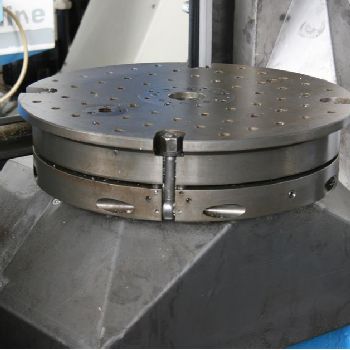

| Description: | Traveling Column Milling Machine |The tool changing unit consist of 3 -NC axis and 1 NC- rotary table axis |ATC ( with magazine) |rotary table Type SKH-NC 4/029, diameter=460mm , table surface plate 500 x20mm, revolution per minute max. 22 rpm |- control panel SIEMENS |- chip conveyor Make Knoll type 400K-3/280, ejection height 1150mm |- cooling system for spindle make SCHIMBKE Type DK 34V, 1,53 kW|Technical Details: |- x-travel: 690 mm |- y-travel: 400 mm |- z-travel: 550 mm |- B-axis (table): 360 |- control: Siemens 840 D |- spindle speed: max. 12 000 rpm |- turret head: 6 places |- tool taper: HSK-A63C-M Ik |- total power requirement: 200 kW |- weight of the machine: approx. 10,5 t |- dimensions of machine: 4,2x2,2x3,0 mm |- dimension swarf conveyor LxWxH: 3,0x1,3x1,65 |
| Technical Specifications: | Axis X: 690.0 mm Axis Y: 400.0 mm Axis Z: 550.0 mm Rotary table (4th axis): yes CNC: Siemens 840 D Table length: 500.0 mm Table width: 20.0 mm Max. spindle speed: 12000 rpm Spindle motor power: 200.0 kW Length x width x height: 4200.0 mm × 2200.0 mm × 3000.0 mm Weight: 10500.0 kg State: good At local norms: --------- Status: visible |
