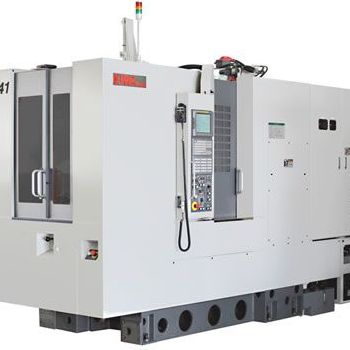

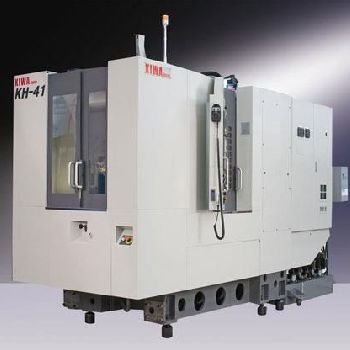

Kiwa KH-41 cnc horizontal milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Australia |
| Category: | Horizontal Machining Centers |
| Manufacturer: | KIWA |
| Model: | KH-41 |

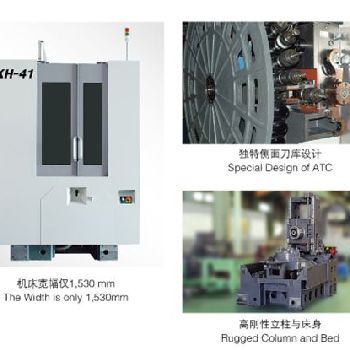

| Description: | KIWA KH-41 CNC HORIZONTAL Machining Centre. |Features and inclusions: |Travel: |- 510 mm x-axis travel |- 510 mm y-axis travel |- 510 mm z-axis travel |- 50-560 mm Spindle centre to Pallet surface |- 100-610 mm Spindle nose to Pallet centre |Table: |- 400 x 400 mm pallet size (2 pallets) |- 500 kg max load |- 550 x 850 mm Max workpiece DIA x Height |Spindle: |- 12000 rpm spindle speed |- Direct drive spindle |- 15/7.5 kW motor |- BBT40 spindle taper |Feedrate : |- 60 m/min x-axis rapid traverse |- 60 m/min y-axis rapid traverse |- 60 m/min z-axis rapid traverse |- 30 m/min cutting feedrate |- 33.3 rpm Table rotating speed |Automatic Tool Changer : |- BBT40 tool shank |- 60 Tools ATC |- 400 mm Max tool length |- 8 kg Max tool weight |- 0.9 sec Tool to Tool |- 2.8 sec Chip to chip |General: |- Machine size: 1540 x 3960 x 2788 mm (L x W x H) |- Nett machine weight: 7,700 kg (2 pallet 60 ATC) |Included: |- Fanuc Oi-MD with AiCC II (200 |
| Technical Specifications: | Axis X: 510.0 mm Axis Y: 510.0 mm Axis Z: 510.0 mm Rotary table (4th axis): no CNC: Fanuc Oi-MD with AiCC II Table length: 400.0 mm Table width: 400.0 mm Max. part weight: 500.0 kg Number of tool pockets: 60.0 Spindle taper: BBT#40 spindle taper Max. spindle speed: 12000 rpm Spindle motor power: 15.0 kW Length x width x height: 1540.0 mm × 3960.0 mm × 2788.0 mm Weight: 7700.0 kg State: new At local norms: yes Status: visible |
