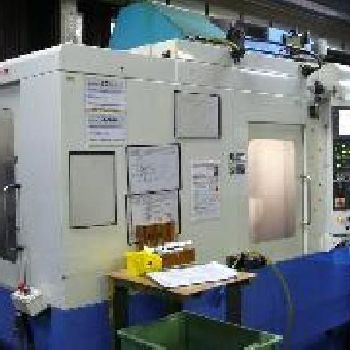

KIRA KN- 40Hb Horizontal machining centre
$ 109,004
| Type: | Buy-It-Now |
| Location: | Switzerland |
| Category: | Machining Centers |
| Manufacturer: | Kira |
| Model: | KN- 40Hb |
| Description: | Divisions of the tray (B) 360000 |Pallet change time 8 seconds |Tool changer: |Number of Positions 20 |Diameter of 100 mm tools |Max length of the tool. 250 mm |Weight max tool. 5 kg |Time of tool changing 1.5 / 3.0 seconds |Spindle taper: BT 40 |Horizontal spindle speeds: |Drive (stepless) |160 t / min |at 8000 rev / min |Feedrate 1-10000 mm / min |Rapid traverse 48 m / min |Spindle motor 5.5 / 3.7 kW |Machine weight approx. 4000 kg |Overall dimensions machine: |Length 3550 mm |Width 1600 mm |Height 2600 mm |Various accessories: |Tool changer: |tool changer with two quick clamps |full protection |Coolant |Chip conveyor |lamp |
| Technical Specifications: | Nbr of pallets: 2.0 Axis X: 500.0 mm Axis Y: 400.0 mm Axis Z: 400.0 mm CNC: FANUC 21I-MA Palette length: 400.0 mm Palette width: 400.0 mm Spindle taper: BT 40 Length x width x height: 3600.0 mm × 1600.0 mm × 2600.0 mm Weight: 4000.0 kg State: excellent At local norms: --------- |
