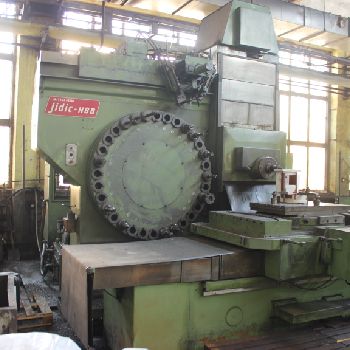

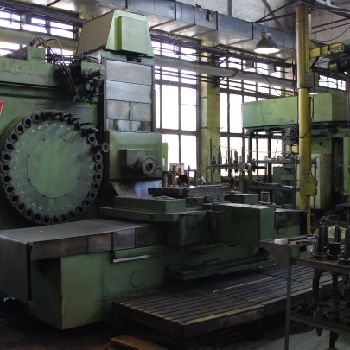

Mitsui Seiki H6B cnc horizontal milling machine
$ 36,910
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Horizontal Milling Machines |
| Manufacturer: | Mitsui Seiki |
| Model: | H6B |
| Year of Make: | 1977 |

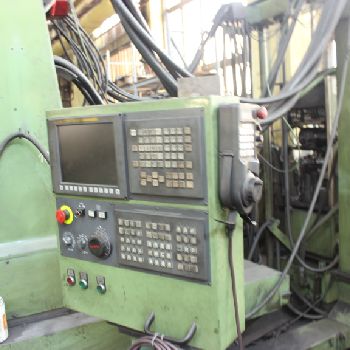

| Description: | For sale, used H6B MITSUI SEIKI horizontal machining center. The machine tool overhauled in the scope of: geometry, exchange of linear magnets and replacement of control on FANUC 0i-MC. The machine tool is currently used in the production department.|Technical parameters: |WORKTABLE |Dimensions of the working table mm 1500 x 900 |Diameter of the rotary table mm 850 |Max. Working table load kg 2000 |Max. Table load kg 1000|travels |Osie poziome (X / Z) mm 1270/846 |Vertical axis (Y) mm 914|SPINDLE |Horizontal spindle axis |Spindle taper MAS BT50 |Spindle revolutions rpm 50 - 3500 |Main propulsion engine power (100%) kW 7.5 |Min./max. the distance between the spindle axis and the surface of the table mm 50/964 |Min./max. the distance between the spindle face and the table rotation axis mm 130/994|TOOL MAGAZINE |Number of tools pcs. 32 |Tool diameter in magazine mm 115 |Max. Tool diameter in the warehouse with adjacent empty jerks mm 150 |Maximum weight of the tool kg 23 |
| Technical Specifications: | X Axis: 1270.0 mm Y Axis: 914.0 mm Z Axis: 846.0 mm CNC type: FANUC typ 0i-MC Table length: 1500.0 mm Table width: 900.0 mm Max load on table: 2000.0 kg Spindle taper: BT50 Max. spindle speed: 3500 rpm Overhauled: yes Year of overhauling: 2008.0 Length x width x height: 6350.0 mm × 7000.0 mm × 3500.0 mm Weight: 11000.0 kg Worked hours: 0 hours Hours under power: 0 hours State: revised At local norms: --------- Status: in production |
