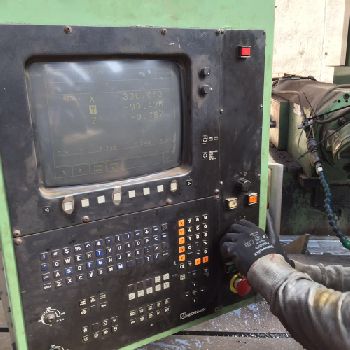

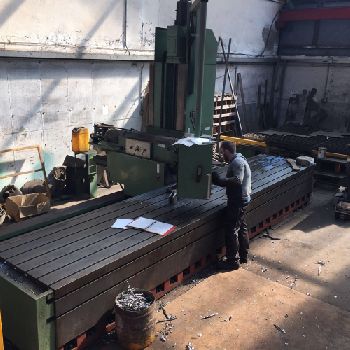

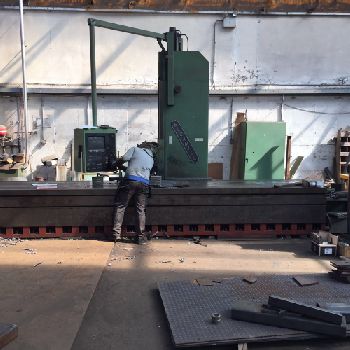

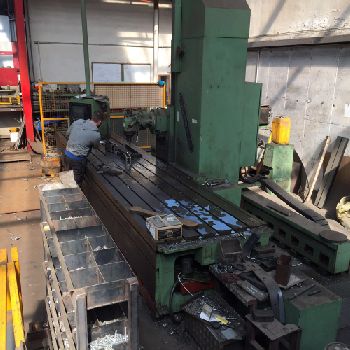

BUTLER ELGAMILL CSN-10 cnc vertical milling machine
$ 58,296
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | CNC Milling Machines |
| Manufacturer: | BUTLER-ELGAMILL |
| Model: | ELGAMILL CSN-10 |
| Description: | Control Heidenhain TNC 415 |Table Size 6000mm x 1030mm |Longitudinal Travel X Axis 4000mm |Cross Travel Y Axis 980mm |Vertical Travel Z Axis 1700mm |Spindle Taper 50 ISO |Head Swivels 360 degrees on 2 faces |Input 400/3/50 |Rapid Traverse 5000 mm per Minute |Spindle Motor 15 hp |Spindle Speeds 30-2080 rpm |Feed Rate 5000mm per Minute |Length 23’8" |Width 10’8 |Height 12’8 |Nett weight approx 18 tons / 18,288 kgs |
| Technical Specifications: | X Axis: 4000.0 mm Y Axis: 980.0 mm Z Axis: 1700.0 mm CNC type: Heidenhain TNC 415 Table length: 6000.0 mm Table width: 1030.0 mm Spindle taper: ISO 50 Max. spindle speed: 2080 rpm Spindle motor power: 11.2 kW Overhauled: no Length x width x height: 7213.0 mm × 3251.0 mm × 3860.0 mm Weight: 18288.0 kg State: good At local norms: --------- Status: visible |
