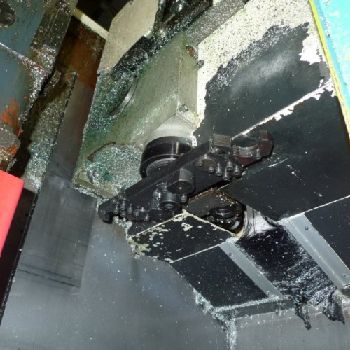

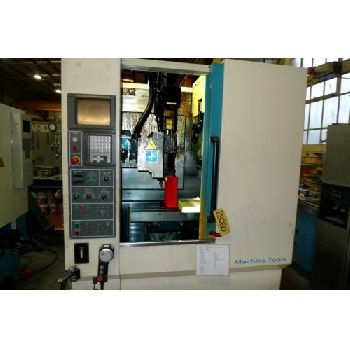

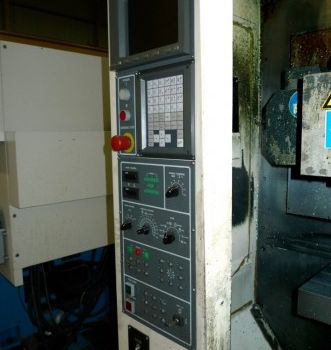

Akira Seiki TS500 cnc vertical milling machine
$ 24,223
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | CNC Milling Machines |
| Manufacturer: | AKIRA |
| Model: | TS500 |
| Description: | Full Specification |Fanuc 0iMD Control |X Axis Traverse |500mm |Y Axis Traverse |280mm |Z Axis Traverse |280mm |Table Size |500mm x 290mm |Maximum Table Load |100Kg |Spindle to Table |125mm 425mm |APC Change Time |1.5 seconds |Spindle Taper |HSK40A |Spindle Speed Range |150 15,000rpm |Rapid Traverse (X/Y/Z) |72/60/72m/min. |Type of Tool Shank |Selection of 6 Holders supplied HSK-40A |Tool Storage Capacity |24 |Maximum Tool Diameter |40mm |Maximum Tool Weight |2.5Kg |Maximum Tool Diameter (next pocket empty) |120mm |Maximum Tool Length |175mm |Tool to Tool Change |0.6 sec. |X Axis Feed Motor |1.4kW |Y Axis Feed Motor |1.4kW |Z Axis Feed Motor |2.8kW |Machine Height |2,220mm |Machine Weight |3,300Kg |Complete with|Chip Flushing |Coolant Wash Gun |8.4 Colour LCD Screen |Swarf Conveyor |Manual |
| Technical Specifications: | X Axis: 500.0 mm Y Axis: 280.0 mm Z Axis: 280.0 mm CNC type: Fanuc 0iMD Table length: 500.0 mm Table width: 290.0 mm Max load on table: 100.0 kg Spindle taper: HSK40A Max. spindle speed: 15000 rpm Spindle motor power: 5.6 kW Overhauled: no Length x width x height: - × - × 2200.0 mm Weight: 3300.0 kg State: good At local norms: --------- Status: visible |
