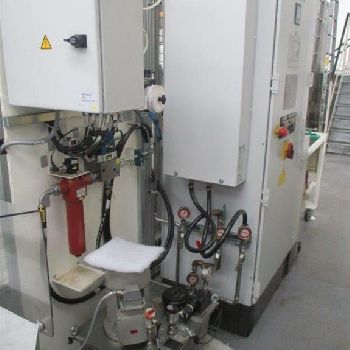

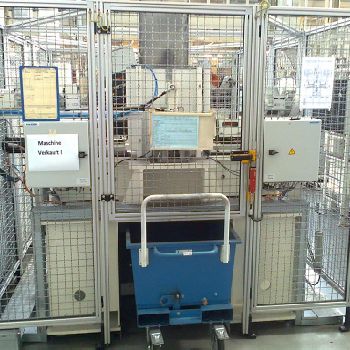

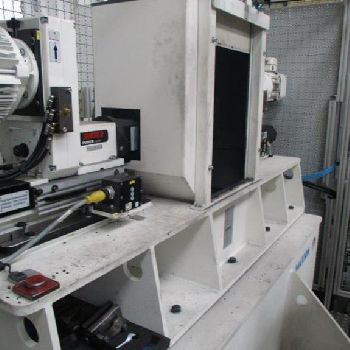

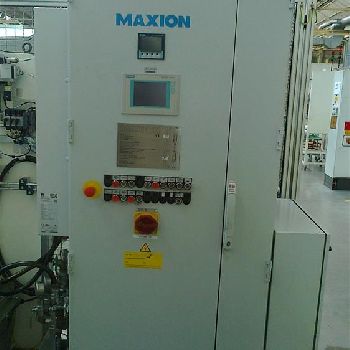

MAXION H40/2/VW/1 cnc vertical milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Milling Machines |
| Manufacturer: | Maxion |
| Model: | H40/2/VW/1 |
| Year of Make: | 2014 |
| Description: | Technical specifications |H40 / 2 / VW / 1| Drilling capacity axis Z1. 3.0 kW | Speed of the Z1 axis approx. 2200 rpm | Drilling capacity axis Z2 1,1 kW | Speed of the Z2 axis approx. 450 rpm | Tool holders of drilling units SK40 | Mech. Travels of drilling units 150 mm | Programmable path axis Z1 to 118 mm | Programmable path axis Z2 to 124 mm | Tool holders of the KM32 drilling heads (5 each) | Total height mm | Total width 2445 mm | Total length (without chip trolley) 3300 mm | Total length (including chip wagon) 3570 |(related to the protective fence, without control cabinets, without hydraulic-pneumatic module, without opening area of the doors) | Floor space PLC control cabinet 1010 x 600 mm | Footprint robot control cabinet 900 x 600 mm | Footprint hydraulic-pneumatic module 860 x 590 mm | Total weight 4000 kg | Operating voltage 400 V | Frequency 50 Hz | Mains fuse / main fuses Machine 63 A | Noise level at idle with maximum possible spindle speed |
| Technical Specifications: | X Axis: 1010.0 mm Y Axis: 600.0 mm Z Axis: 118.0 mm Spindle taper: SK 40 Max. spindle speed: 2200 rpm Spindle motor power: 3.0 kW Overhauled: no Length x width x height: 3570.0 mm × 2445.0 mm × - Weight: 4000.0 kg State: good At local norms: yes Status: visible |
