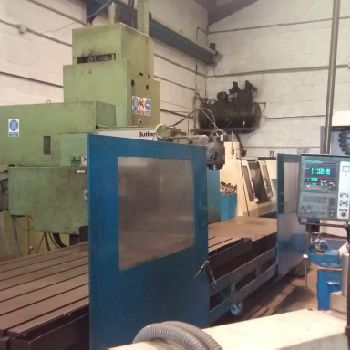

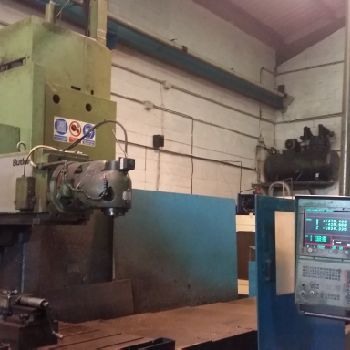

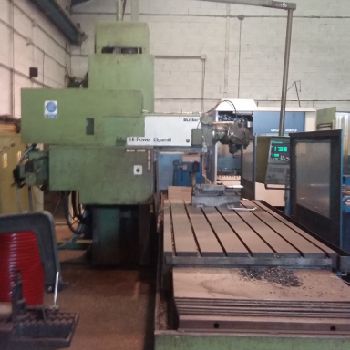

Butler HI-POWER ELGAMILL- CR 15 V3 cnc universal milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Universal Milling Machines |
| Manufacturer: | Butler |
| Model: | HI-POWER ELGAMILL- CR 15 V3 |
| Year of Make: | 1990 |

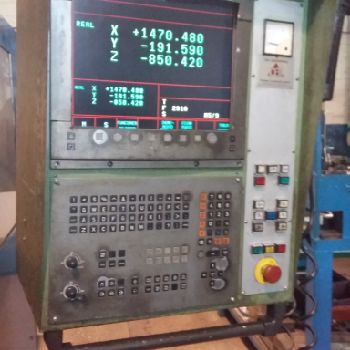

| Description: | BUTLER mod. HI-POWER ELGAMILL- CR 15 V3 Bep type Milling machine |CNC HEIDENHAIN TNC 410 |Excellent condition - Year 1990. |Electronic handwheel. |Motors and regulators of head, axes Y and Z are new, year 2013. |Machine set up to install a fourth axis with its corresponding regulator and rotary indexing plate. |Main motor power: 30 HP. |Table surface: 3.500 x 1.200 mm. |Travels: X- 4.000 mm. Y-1.600 mm. Z-1.700 mm. |RAM travel: 970 mm. |Equipped with Power Drawbar. |LAN BAT multiangular vertical head. |Hydraulic tool clamping. |Taper: ISO-50. |Spindle maximum speed: 1.500 r.p.m. |Speeds range: 20-3.000 r.p.m. |Feeds range: 5-2.500 mm/min. |Max. weight on table:: 20.000 kg. |Dimensions of the machine mounted: Width 8.000 mm. Depth: 3.200 mm. Height 4.000 mm. |Weighton table: 20.000 kg. |Service table and complete tooling included. |It can be inspected in production. |
| Technical Specifications: | X Axis: 4000.0 mm Y Axis: 1600.0 mm Z Axis: 1700.0 mm CNC type: HEIDENHAIN TNC 410 Table length: 3500.0 mm Table width: 1200.0 mm Max load on table: 2000.0 kg Spindle taper: ISO50 Max. spindle speed: 3000 rpm Spindle motor power: 22.4 kW Overhauled: no Length x width x height: 8000.0 mm × 3200.0 mm × 4000.0 mm Weight: 20000.0 kg State: good At local norms: --------- Status: visible |
