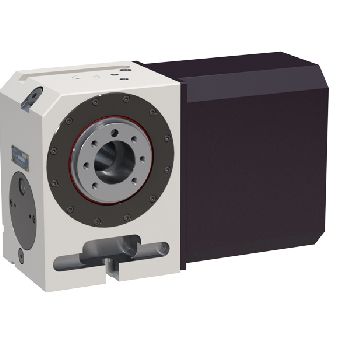

Tsudakoma RNE-200L-FN Other
$ 12,744
| Type: | Buy-It-Now |
| Location: | Russia |
| Category: | Further Equipment |
| Manufacturer: | FN |
| Model: | RNE-200L-FN |
| Year of Make: | 2017 |
| Description: | Model RNE-200L-FN |Left direction |Diameter of the spindle 120 mm |Diameter of the table 200 mm |Center height 160 mm |Central hole (front diameter) 65H7x45 |Central hole (through) 45 |Width of guide block 18h7 |Net weight 65 kg |The maximum speed of rotation is 33.3 rpm |Indexing accuracy 20 sec |Repeatability 7 sec |Clamping system Pneumatic |The maximum weight of the workpiece (with a tailstock) is 100 kg (200 kg) |
| Technical Specifications: | Length x width x height: 495.0 mm × 179.0 mm × 285.0 mm Weight: 65.0 kg Worked hours: 0 hours Hours under power: 0 hours State: good At local norms: --------- Status: packed |
