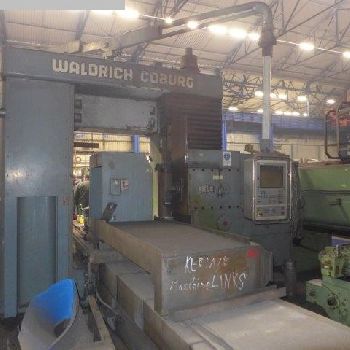

Waldrich-coburg 12-11 FP 100 Portal milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Romania |
| Category: | Gantry Type Milling Machines |
| Manufacturer: | WALDRICH COBURG |
| Model: | 12-11 FP 100 |
| Year of Make: | 1967 |

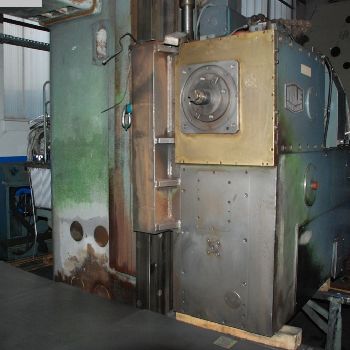

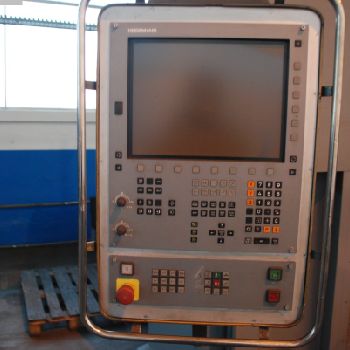

| Description: | New in: 1967/2008|Control: CNC|Location: Site|Term of delivery: to be agreed on|Description:|Text Dimension Unit|machine is equipped with 1 horizontal milling head.|technical details:|x-travel 4000 mm|y-travel 1250 mm|z-travel 500 mm|Control Heidenhain TNC 320|Passage width 1100 mm|passage 1500 mm|tool taper ISO 60 DIN 2080|main drive motor 60 kW|spindle turning speed range 12,5-40-75-238-252-800 U/min|torque max. 7000 Nm|dimensions of the machine ca. 10x3x4 m |
| Technical Specifications: | X axis: 4000.0 mm Y axis: 1250.0 mm Z axis: 500.0 mm CNC: Yes Type of CNC: Heidenhain TNC 320 Spindle taper: ISO 60 Spindle motor power: 60.0 kW Length x width x height: 10000.0 mm × 3000.0 mm × 4000.0 mm Weight: - State: good At local norms: --------- |
