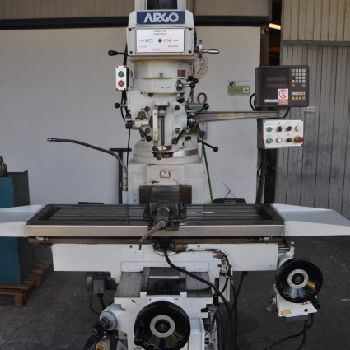

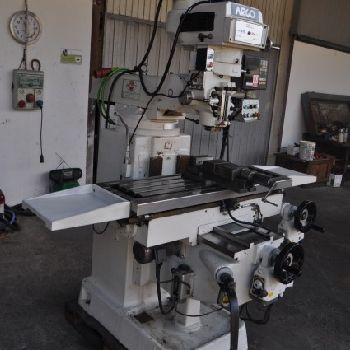

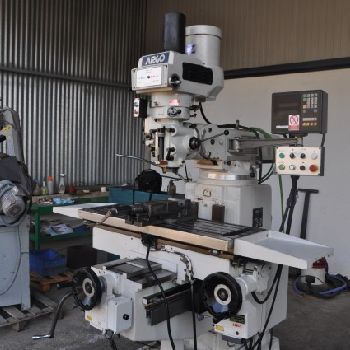

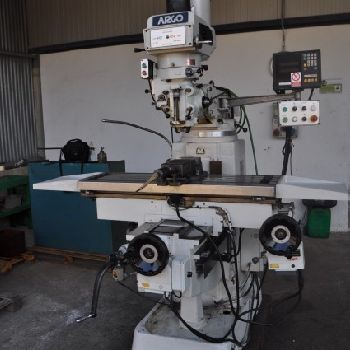

Argo FV5 Portal milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Gantry Type Milling Machines |
| Manufacturer: | Argo |
| Model: | FV5 |

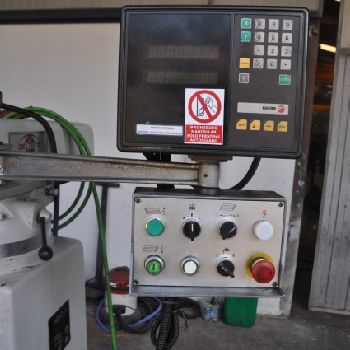

| Description: | Milling Machines ARGO of turret FV5, |spindle with variable speeds, |mooring of the pneumatic tool, |table of 1370 x 280mm, |travels long 900mm transv 345 mm vert 400mm |Ram travel 570mm |course of the cane 150mm |iso 40 |tours of the table in automatic and fast, |Head speed 70-3800eprm, |with 2-axis dimension display, |3cv head power, |estimated weight 1700kg. |
| Technical Specifications: | X axis: 900.0 mm Y axis: 345.0 mm Z axis: 400.0 mm Table length: 1370.0 mm Table width: 280.0 mm Spindle taper: Iso 40 Max. spindle speed: 3800 rpm Spindle motor power: 2.2 kW Length x width x height: - × - × - Weight: 1700.0 kg State: good At local norms: yes |
