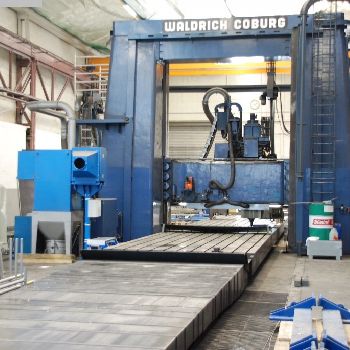

WALDRICH-COBURG 20-10 FP 280 portal / gantry milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Gantry Type Milling Machines |
| Manufacturer: | WALDRICH COBURG |
| Model: | 20-10 FP 280 |
| Year of Make: | 1999 |

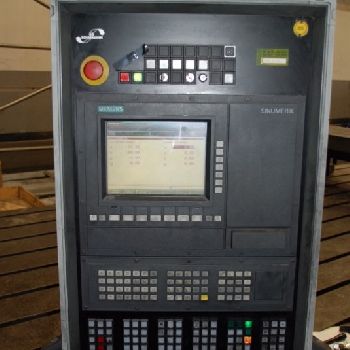

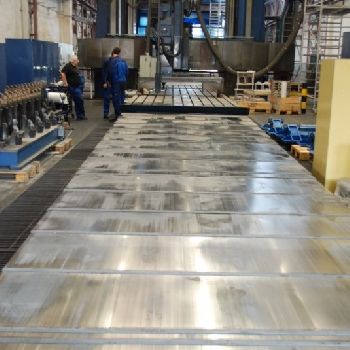

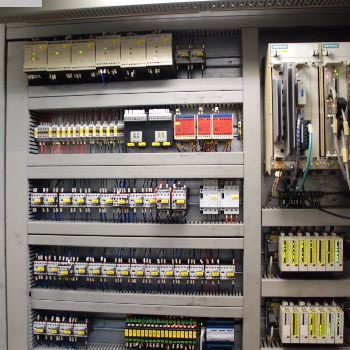

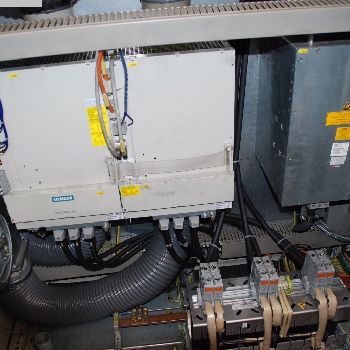

| Description: | Technical Details |x-travel 17785 mm |y-travel 4755 mm |z-travel 800 mm |milling width 3450 mm |distance table - vertical milling spindle 3982 mm |table height over floor 500 mm |spindle diameter in front bearing 200 mm |turning speed range 12 - 450 U/min |tool taper ISO 60 |axial adjustment of the spindle slide 800 mm |creep feed 5 und 50 mm/min |feed stepless 10 - 3000 mm/min |cross adjustment of cross beam milling head 4745 |rapid traverse 2 m/min |creep feed 3 und 30 mm/min |feed stepless 6 - 2000 mm/min |rapid traverse 2 m/min |creep feed 3 und 30 mm/min |feed stepless 6 - 2000 mm/min |vertical adjustment of cross beam 3682 mm |rapid traverse 1,5 m/min |creep feed 1,25 und 12,5 mm/min |feed stepless 5 - 1500 mm/min |table-size 17800x2800 mm |column daylight 3600 mm |Control SIEMENS 840 C |table load 50.000/100.000 kg |total power requirement 170 kW |weight of the machine ca. 300 t |dimensions of the machine ca. 40 x 8,4x 8,6 m|Description |+ electric |
| Technical Specifications: | X axis: 17785.0 mm Y axis: 4755.0 mm Z axis: 800.0 mm CNC: Yes Table length: 17800.0 mm Table width: 2800.0 mm Max load on table: 100000.0 kg Type of CNC: CNC SIEMENS 840 C Spindle taper: ISO 60 Max. spindle speed: 450 rpm Length x width x height: 40000.0 mm × 8400.0 mm × 8600.0 mm Weight: 300000.0 kg State: good At local norms: --------- |
