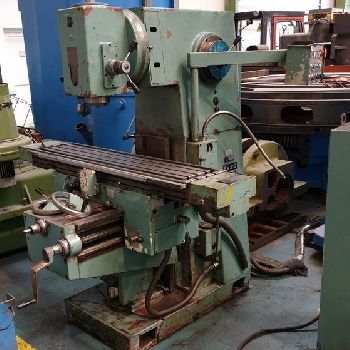

Tos Olomouc FV 20 vertical milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Vertical Milling Machines |
| Manufacturer: | TOS Olomouc |
| Model: | FV 20 |
| Description: | External dimensions of the work table |- width 300 mm |- Length 1375 mm |The largest workpiece weight of 250 kg |Table clamping grooves: |- number 3 |- width x pitch 14x63 mm |Taper in spindle: normally steep 40 |Vertical spindle adjustability 75 mm |Rotate spindle head 45 on both sides |spindle spindle distance from rack guide 365 mm |Spindle spindle distance from table 100-520 mm |Spindle speed: |- number of degrees 12 |- Range 31.5-1400 / min |Table movement: |- longitudinal 900 mm |- transverse 300 mm |- 420 mm vertical |Shifts: |- number of degrees 13 |- longitudinal and transverse 14-900 |- Vertical 4-250 mm / min |Rapid Traffic: |- longitudinal and transverse 2800 mm / min |- Vertical 800 mm / min |Main electric motor 4 kW |Total machine input 5,225 kW |Machine dimensions (LxWxH) 1620x1950x1965 mm |Machine weight 2450 kg |Price by agreement. |
| Technical Specifications: | Table length: 1375.0 mm Table width: 300.0 mm Max load on table: 250.0 kg Spindle taper: strmý 40 Overhauled: no Length x width x height: 1620.0 mm × 1950.0 mm × 1965.0 mm Weight: 2450.0 kg State: good At local norms: --------- Status: visible but unplugged |
