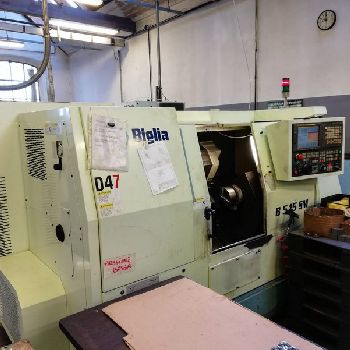

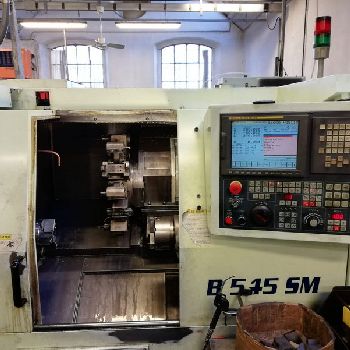

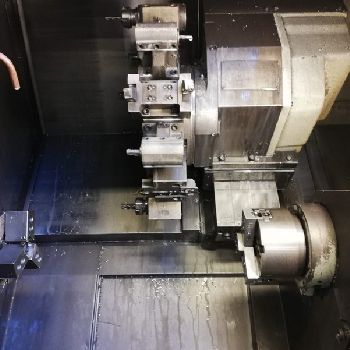

Used BIGLIA B 545 SM cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | CNC Lathes |
| Manufacturer: | Biglia |
| Model: | B 545 SM |
| Year of Make: | 2006 |
| Description: | Max workable from bar 45 mm |Max workable from recovery mm 220 |Max workable length 560 mm |Max rotating 580 mm |Main spindle rotation speed 5000 rpm |Attack spindle nose asa 5 |Spindle hole 55 mm |Internal of bearings 90 mm |Engine power kw 11/15 |Counter-spindle rotation speed 5000 rpm |Attack spindle nose asa 5 |Spindle hole 55 mm |Internal of bearings 90 mm |Motor power kw 7.5 / 11 |Motorized tool turret positions n 12 |Tool rotation speed 3000 rpm |Motor power kw 3.7 |C axis programmable min value 0.001 |Axis travel x 170 mm |Z axis travel 560 mm |Axis travel b mm 490 |Rapid x / z / b m / min 20/24/30 |Ingobro with chip conveyor mm 4240 x 200 x 1900 |Approximate weight 4900 kg|Cnc fanuc|In the equipment No. 2 motorized |Available June 2019 |
| Technical Specifications: | Turning length: 560.0 mm Turning Ø: 580.0 mm Type of CNC: FANUC X-axis: 170.0 mm Z-axis: 560.0 mm Spindle taper: ASA 5″ Number of rotating tools: 12.0 Turning speed: 5000 rpm Spindle motor power: 15.0 kW Tailstock: no Bar feeder: no Length x width x height: 4240.0 mm × 2000.0 mm × 1900.0 mm Weight: 4900.0 kg State: good At local norms: yes Status: visible |
