MICROCUT LT52 cnc lathe
$ 45,143
| Type: | Buy-It-Now |
| Location: | France |
| Category: | CNC Lathes |
| Manufacturer: | Microcut |
| Model: | LT52 |
| Year of Make: | 2013 |

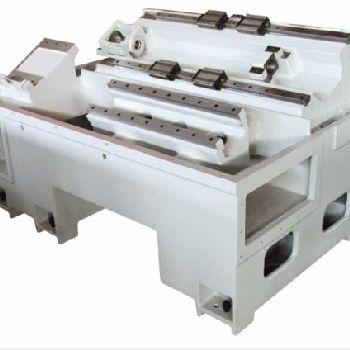

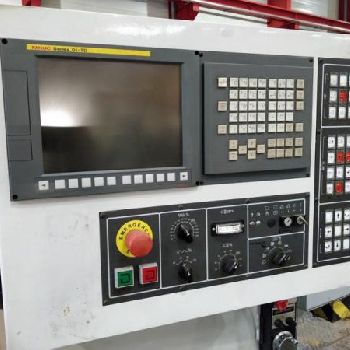

| Description: | This compact and rigid machine range is a good compromise between speed, power, precision and durability.|This machine is controlled by a Fanuc 0iTD digital control, particularly suitable for ISO or convesational programming with the manual guide|The main features of the machines in this range are:|A monoblock bench in meehanite cast iron (no chair on a flat bench) at 30 |Linear guides with roller bearings on both axes for quick and precise movement of the turret and tailstock |Fast, powerful 5000rpm mechanical spindle mounted on 4 precision angular bearings |A large spit passage of 52mm |Fast displacement at 30m / min thanks to precision ball screws class P3 |Chip clearance studied by the structure of the machine |A 3-jaw chuck with hydraulic clamping to reduce the time of change of parts and to work in series |A counterpoise with a hydraulically controlled sleeve outlet |Facetted manometers to adjust the clamping pressure of the jaws and pressing pressure of the tailpipe |a |
| Technical Specifications: | Turning length: 460.0 mm Turning Ø: 500.0 mm Ø above the bed: 500.0 mm Ø above transversing slide: 220.0 mm Length between centers: 510.0 mm Type of CNC: Fanuc 0iTD X-axis: 215.0 mm Z-axis: 520.0 mm Spindle taper: A2-6" Spindle bore: 52.0 mm Number of turrets: 1.0 Turning speed: 5000 rpm Spindle motor power: 15.0 kW Tailstock: yes Bar feeder: no Length x width x height: 2390.0 mm × 1650.0 mm × 1600.0 mm Weight: 3200.0 kg State: good At local norms: --------- Status: visible |
