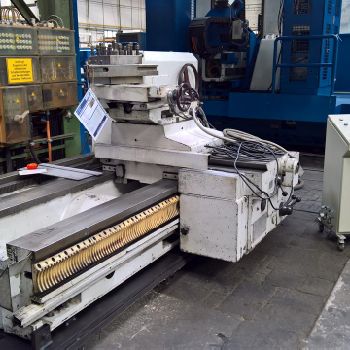

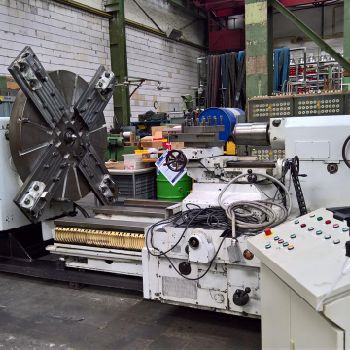

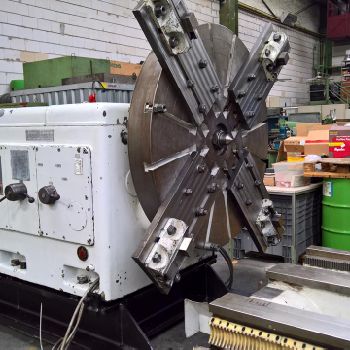

WMW Zerbst DPS 1600 x 2000/1 lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Lathes |
| Manufacturer: | WMW Zerbst |
| Model: | DPS 1600 x 2000/1 |
| Year of Make: | 1970 |
| Description: | Turning diameter over bed: 1600 mm |Turning diameter over support: 1200 mm |Turning length: 2000 mm |Turning diameter in crank: 2300 mm |Max. Weight of work piece in-between center: 8000 kg |Engine: 37 kW |Wide of bed; 1400 mm |Spindle bore: 100 mm |Face plate diameter: 1500 mm |Spindle speed: 2 140 rpm |Power requirement: 45 kW |Weight ca.: 17 t |Space requirement: 6,5 x 3,5 x 2,6 m|Digital display for 3 axis |Thyristor controlled main drive |Automatic feed in top slide |Base plate with head stock rise |
| Technical Specifications: | Turning length: 2000.0 mm Turning Ø: 2300.0 mm Ø above the bed: 1600.0 mm Ø above transversing slide: 1200.0 mm Max workpiece weight: 8000.0 kg Spindle bore: 100.0 mm Turning speed: 140 rpm Spindle motor power: 37.0 kW Overhauled: yes Year of overhauling: 2008.0 Length x width x height: 6500.0 mm × 3500.0 mm × 2600.0 mm Weight: 17000.0 kg State: good At local norms: --------- |
