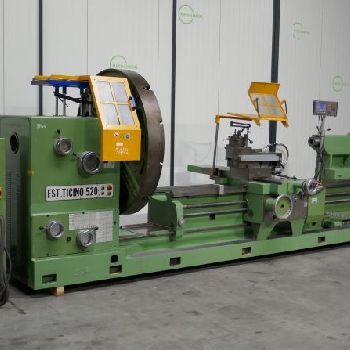

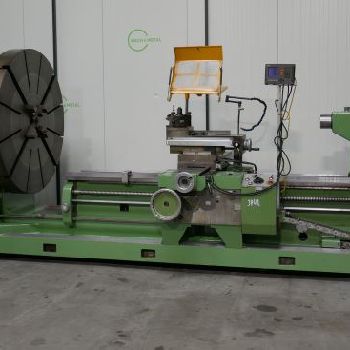

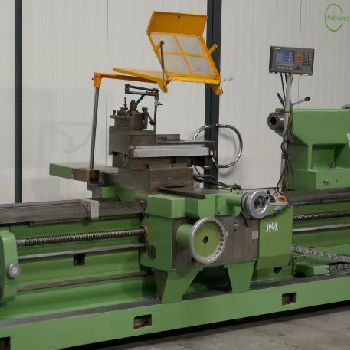

EST Ticino ET BM 520 lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | Lathes |
| Manufacturer: | EST TICINO |
| Model: | ET BM 520 |
| Description: | EST Ticino ET BM 520 1040 x 4.500 mm|Swing over bed 1040 mm |Swing over cross slide 710 mm |Swing in the gap 1780 mm |Distance between centres 3000 4500 mm |Work piece weight 8500 kg |Spindle bore 160 mm |Spindle speeds / ranges 900 Rpm |Bed width 600 mm |Power 30 Kw|Length 5500 mm |Width 2300 mm |Height 2300 mm |
| Technical Specifications: | Length between centers: 4500.0 mm Ø above the bed: 1040.0 mm Ø above transversing slide: 710.0 mm Max workpiece weight: 8500.0 kg Spindle bore: 160.0 mm Turning speed: 900 rpm Spindle motor power: 30.0 kW Overhauled: no Length x width x height: 5500.0 mm × 2300.0 mm × 2300.0 mm Weight: - State: good At local norms: --------- |
