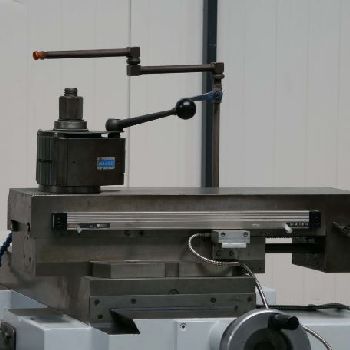

EST Ticino ET BM 420 lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Lathes |
| Manufacturer: | EST TICINO |
| Model: | ET BM 420 |
| Year of Make: | 1982 |
| Description: | MAKE EST Ticino |TYPE ET BM 420 |YEAR 1982|SPECIFICATIONS |Swing over bed 840 mm |Swing over cross slide 510 mm |Swing in the gap 1580 mm |Distance between centres 1500 - 2250 mm |Work piece weight 8500 kg |Spindle bore 160 mm |Spindle speeds / ranges 600 Rpm |Bed width 600 mm |Power 35 Hp Kw|DIMENSIONS |Length 4000 mm |Width 2350 mm |Height 1900 mm |
| Technical Specifications: | Ø above the bed: 840.0 mm Ø above transversing slide: 510.0 mm Diameter in the gap: 1580.0 mm Max workpiece weight: 8500.0 kg Spindle bore: 160.0 mm Turning speed: 600 rpm Spindle motor power: 35.0 kW Overhauled: no Length x width x height: 4000.0 mm × 2350.0 mm × 1900.0 mm Weight: - State: good At local norms: --------- Status: visible |
