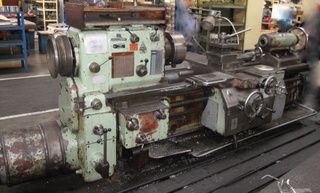

Tos Čelákovice SU 63 A/1250 lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Lathes |
| Manufacturer: | TOS Celakovice |
| Model: | SU 63 A/1250 |
| Description: | Swing over bed 630 mm |1250 mm distance between centers |swing over cross slide 360 mm |spindle bore 60 mm |taper 1:20 M 70 |bed width 567 mm |Clamping plate diameter 650 mm |the diameter of the driving plate 300 mm |diameter rounder. Chuck 320 mm |Spindle speed: |the number of degrees 5x24 |speed range - 5 rows |8-375 rev / min |10.6-500 rev / min |14 to 670 rev / min |19 to 900 rev / min |25-1180 rev / min |feeds: |number of degrees 41 |lengthwise in the range from 0.064 to 6.00 mm / rev |transverse to the extent the product of the values of longitudinal displacement and coefficient of 0.386 |threads: |48 metric pitch 0.219-48 mm |42 Whitwortovch susp / 1 "48-7 / 8 |48 modular module 0.054-12 |Diametral Pitch 36 DP 384-1 3/4 |36 Circular Pitch 7 / 256-1 1/2 |electric motor to drive the machine: |speed 1420/710 rev / min |17/10 kW power |Machine floor space: |width 1710 mm |Length 3810 mm |weight machines norm. acc. 5000 kg |Price is negotiable. |
| Technical Specifications: | Length between centers: 1250.0 mm Ø above the bed: 630.0 mm Ø above transversing slide: 360.0 mm Spindle bore: 60.0 mm Turning speed: 1420 rpm Spindle motor power: 17.0 kW Overhauled: no Length x width x height: 3810.0 mm × 1710.0 mm × - Weight: 5000.0 kg State: good At local norms: --------- Status: visible but unplugged |
