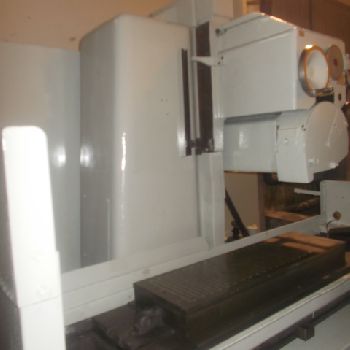

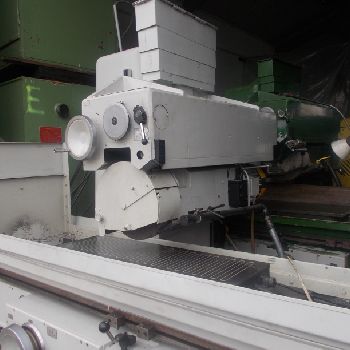

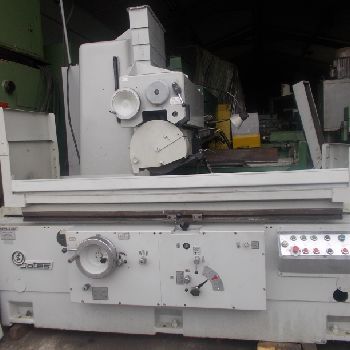

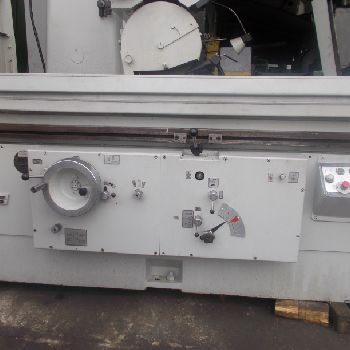

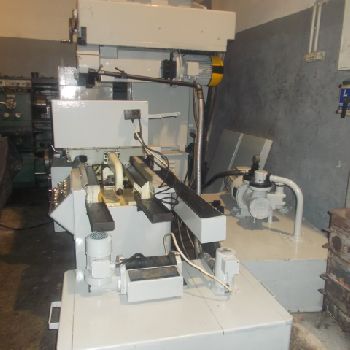

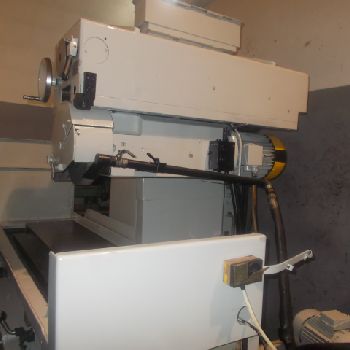

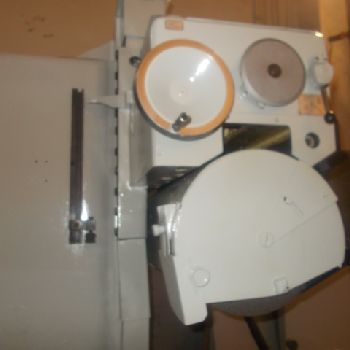

Jotes SPD 40 Surface grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Surface Grinding Machines |

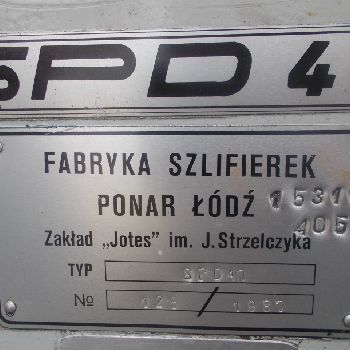

| Manufacturer: | Jotes |
| Model: | SPD 40 |
| Year of Make: | 1987 |
| Description: | Surface grinding machine SPD-40. |Year of construction 1987. |Manufacturer JOTES LODZ PL.|Parameters: |- table 450 x 1000 mm |- max. Upright axis: 575 mm |- min. Elevation of spindle axis: 125 mm |- the smallest table pitch: 200 mm |- table speed range: 2-30 m / min. |- the highest grinding wheels: 470 mm |- Adjustable continuous feed wheel: 0.5-4.5 m / min. |- adjustable stroke of the wheel: 3-30 mm |- manual grinding wheel / 1 rev. Wheels: 8 mm |- the largest vertical displacement of the wheel: 450 mm |- highest vertical accuracy: 0.002 mm |- highest grinding depth / auto infeed: 0.02 mm |- the largest grinding allowance / auto infeed: 0.36 mm |- new wheel diameter: 350 mm |- wheel width: 63 mm |- hole diameter: 127 mm |- diameter of discs grinding wheel: 197 mm |- wheel speed: 26 m / s |- amount of hydraulic oil: 300 l |- installed power: 10 kW. |- machine dimensions: 3740 x 2080 x 2260 mm |- weight of the grinder: 4800 kg.|Technical condition of the machine |
| Technical Specifications: | Table length: 1000.0 mm Table width: 450.0 mm Manual: Yes Wheel diameter: 350.0 mm Wheel width: 63.0 mm Wheel bore: 127.0 mm Max. wheel speed: 26 rpm Power: 10.0 kW Length x width x height: 3740.0 mm × 2080.0 mm × 2260.0 mm Weight: 4800.0 kg State: excellent At local norms: --------- Status: under power |
