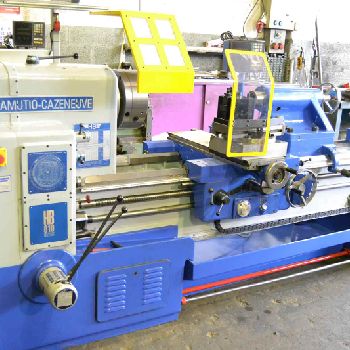

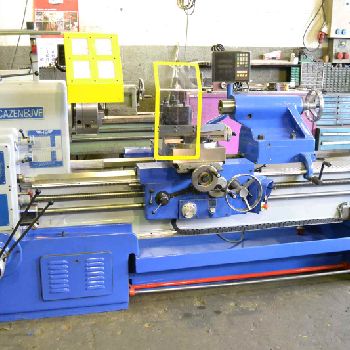

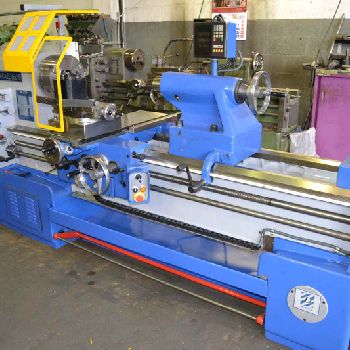

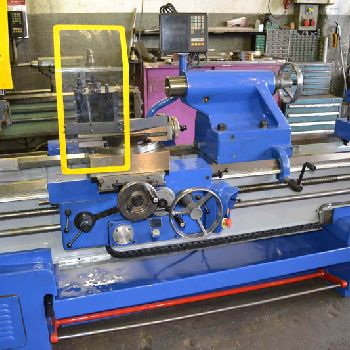

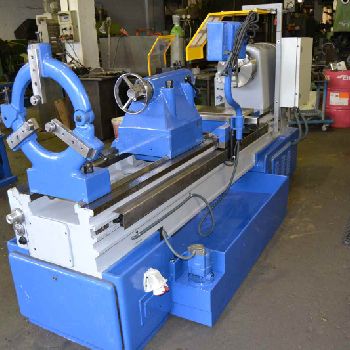

Amutio Cazeneuve HB810x1500 lathe
$ 39,811
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Lathes |
| Manufacturer: | AMUTIO CAZENEUVE |
| Model: | HB810x1500 |
| Description: | Rebuilt around. |Distance between points: 1500mm. |Diameter above the bed: 810mm. |Diameter above transversing slide: 770mm. |I Diameter s / cross slide: 500mm. |Height: 365mm. |Number axis spindle speed: 18. |Diameter inside the spindle axis: 81mm. |Cone of counterpoint: CM-6 |Width of the bed: 505mm. |Course maximum of the cross slide: 400mm. |Course maximum of adjustable carriage: 220mm. |Course maximum of the tailstock quill: 235mm. |Machine weight: 3050Kgs. |Cv Engine power: 25-20-15. |Machine dimensions: 3140x1270x1405. |Equipped with new universal plate 400 and rear window. |Protections plate and carriage and CE certificate (RD1215 / 97). (Optional Cowling) |Optional display. |Warranty: 1 year. |
| Technical Specifications: | Length between centers: 1500.0 mm Center height: 400.0 mm Turning length: 1500.0 mm Ø above the bed: 810.0 mm Ø above transversing slide: 500.0 mm Diameter in the gap: 1000.0 mm Spindle bore: 81.0 mm Overhauled: yes Year of overhauling: 2018.0 Length x width x height: 3140.0 mm × 1270.0 mm × 1405.0 mm Weight: 3050.0 kg State: rebuilt At local norms: yes Status: visible |
