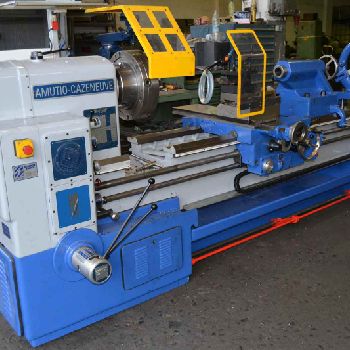

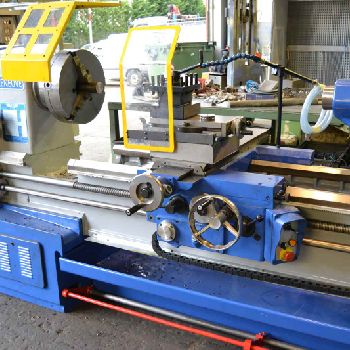

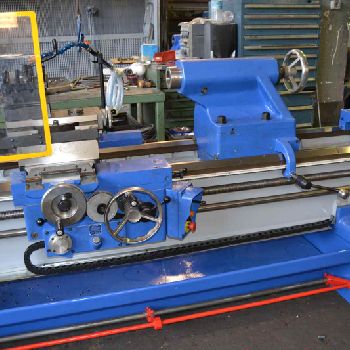

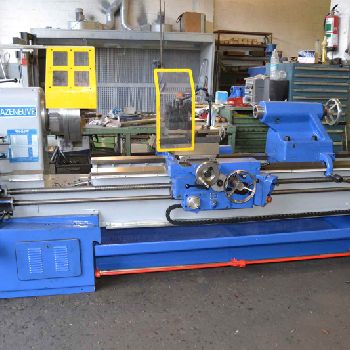

Amutio Cazeneuve HB810x2000 lathe
$ 43,129
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Lathes |
| Manufacturer: | AMUTIO CAZENEUVE |
| Model: | HB810x2000 |
| Description: | Machine rebuilt. |Distance between centers: 2000 mm. |Diameter above the bed: 810 mm. |Diameter above the transversing slide: 770 mm. |Diameter above the cross slide: 500 mm. |Height of center: 365 mm. |Number axis spindle speed: 18. |Bore diameter: 81 mm. |Tailstock taper: CM-6 |Width of the bed: 505 mm. |Maximum travel of the cross slide: 400 mm. |Max travel of adjustable carriage: 220 mm. |Maximum travel of the tailstock: 235 mm. |Machine weight: 3250 kg. |Engine power: 25-20-15 HP. |Machine dimensions: 3640x1270x1405 mm. |Equipped with new universal plate 400 mm and bezel. |Protections plate and carriage and CE certificate (RD1215 / 97). (Optional Cowling) |Optional display. |Warranty: 1 year. |
| Technical Specifications: | Length between centers: 2000.0 mm Center height: 400.0 mm Turning length: 2000.0 mm Ø above the bed: 810.0 mm Ø above transversing slide: 500.0 mm Diameter in the gap: 1000.0 mm Spindle bore: 81.0 mm Overhauled: yes Year of overhauling: 2018.0 Length x width x height: 3640.0 mm × 1270.0 mm × 1405.0 mm Weight: 3250.0 kg State: rebuilt At local norms: yes Status: visible |
