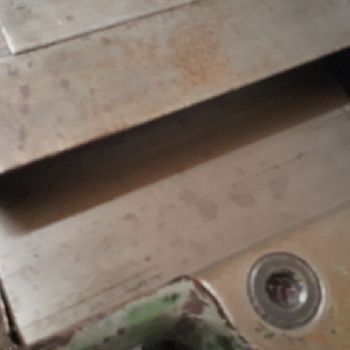

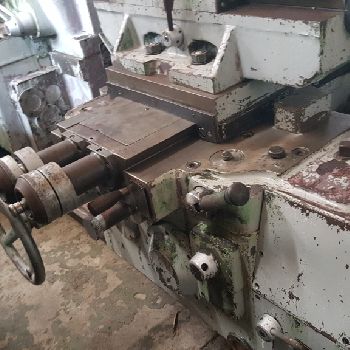

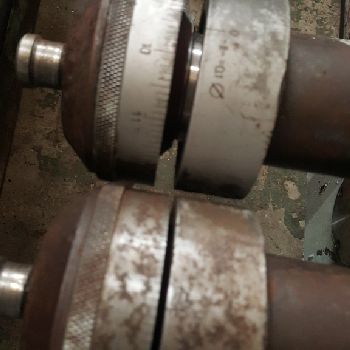

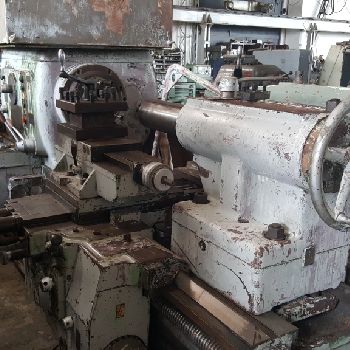

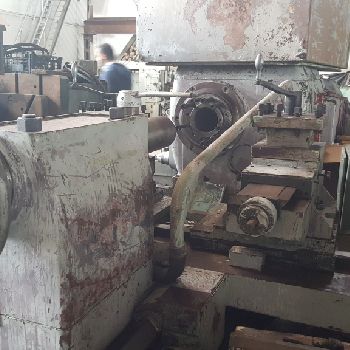

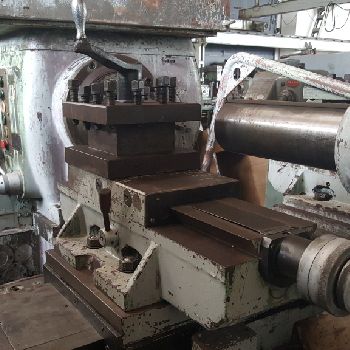

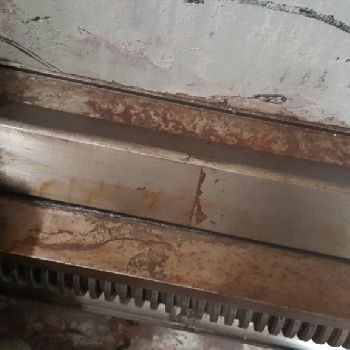

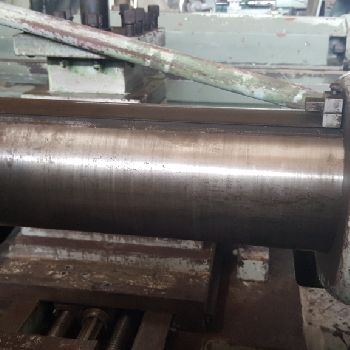

Poreba TR100C lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Bulgaria |
| Category: | Lathes |
| Manufacturer: | POREBA |
| Model: | TR100C |
| Description: | Face lathe POREBA TR100C |Max turning diameter in gap 1500 mm |Distance between centers 1500 mm |Height of centers over bed: 500 mm |Diameter above the bed: 1000 mm |Swing over the bed slide: 700 mm |Bed width: 660 mm |Speeds: |Number of stages: 16 / CVT |Speed range: 5 500 U / min |feeds: |Number of stages: 40 |Range of longitudinal feeds: 0,1 1,6 mm / rev |Area of cross feeds: 0,05 0,8 mm / rev |Rapid movement along: 4000 mm / min |Rapid movement plan: 2000 mm / min |Main motor: 40 kW |
| Technical Specifications: | Length between centers: 1500.0 mm Center height: 500.0 mm Ø above the bed: 1500.0 mm Ø above transversing slide: 700.0 mm Diameter in the gap: 1500.0 mm Spindle motor power: 40.0 kW Overhauled: no Length x width x height: 2500.0 mm × 1400.0 mm × 1500.0 mm Weight: 10000.0 kg State: good At local norms: --------- |
