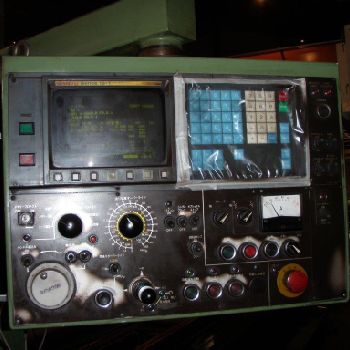

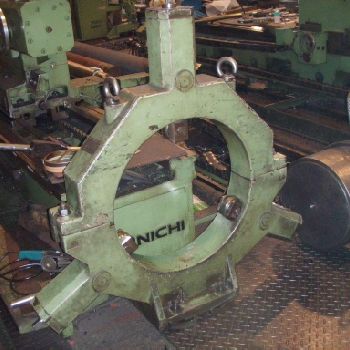

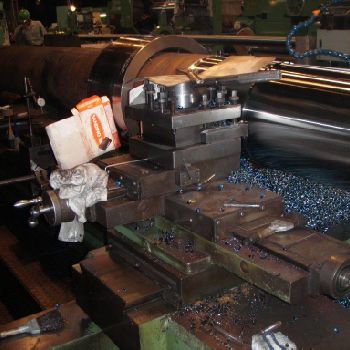

Dainichi DM-NC102 Nc lathe
$ 132,126
| Type: | Buy-It-Now |
| Location: | Japan |
| Category: | CNC Lathes |
| Manufacturer: | Dainichi |
| Model: | DM-NC102 |
| Year of Make: | 1991 |
| Description: | SWING OVER BED; 1010 |CENTER; 10000 |SWING OVER SADDLE; 600 |BED WIDTH; 635 |HOLE DIA.; 84 |630 RPM |STROKE; X-440, Z-10000 |MAIN MOTOR; 15Kw |
| Technical Specifications: | Turning length: 10000.0 mm Ø above the bed: 1010.0 mm Ø above transversing slide: 635.0 mm Length between centers: 10000.0 mm Type of CNC: FANUC15T X-axis: 440.0 mm Z-axis: 10000.0 mm Max workpiece weight: 18000.0 kg Spindle bore: 84.0 mm Number of turrets: 4.0 Turning speed: 630 rpm Spindle motor power: 15.0 kW Tailstock: yes Bar feeder: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: under power |
