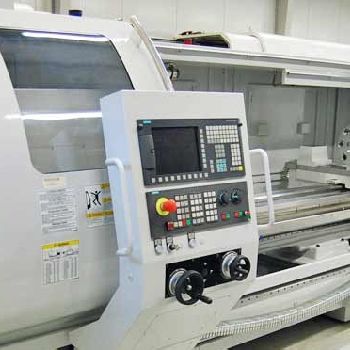

Mondiale Nordic 650CNC cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | CNC Lathes |
| Manufacturer: | Mondiale |
| Model: | Nordic 650CNC |
| Description: | Year of Manufacture New |Control Siemens 828D |Centre distance (mm) 3000 |Max swing over bed (mm) 650 |Max swing over cross slide (mm) 410 |Spindle bore (mm) 106 |R.P.M. 80 - 2400 |kW 15/22 |Volts 400V |Cycles 50 |Barrufaldi Turret, 8 positions |1 x Steady rest with rolls, diameter 20 - 200 mm |1 x Steady rest with rolls, diameter 180 -410 mm |Manual chuck Schunck Rota G, diameter 315 mm |Fully enclosed guarding |Coolant |
| Technical Specifications: | Ø above the bed: 650.0 mm Ø above transversing slide: 410.0 mm Length between centers: 3000.0 mm Type of CNC: Siemens 828D Spindle bore: 106.0 mm Number of tools on turret: 8.0 Turning speed: 2400 rpm Spindle motor power: 22.0 kW Tailstock: no Bar feeder: no Length x width x height: - × - × - Weight: - State: new At local norms: --------- |
