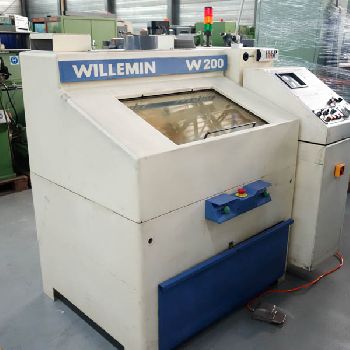

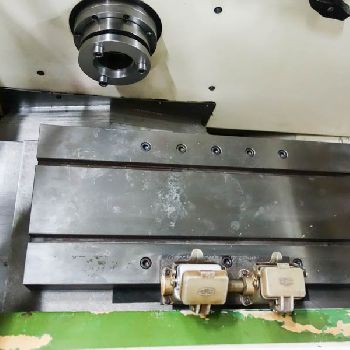

Willemin Macodel W200 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Switzerland |
| Category: | Turning Centers |
| Manufacturer: | Willemin-Macodel |
| Model: | W200 |
| Year of Make: | 1986 |

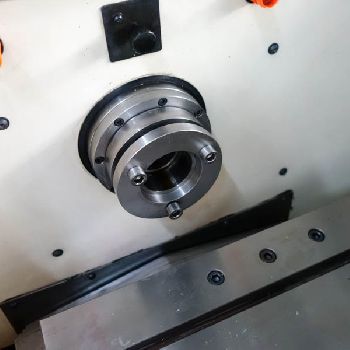

| Description: | Technical data |Overhauled 2001 |strokes |X , Z : 470 , 185 mm |high speed feed (X, Z axis) : 12, 7.5 m/mm |high speed feed C axis : 40 min-1 |main spindle |power : 6.5 kW to 2000 min-1 |speed : 50 to 6 000 min-1 |torque at 1000 min-1 : 62.3 Nm |diameter : 130 mm |nose : A 4 DIN 55021 |collet : F 38 |clamping : pneumatical |capacity |bar clearance : 32 mm |second operation, relieve : 200 mm |connections |power supply : 3x380V 50 Hz 20A |Pneumatic : 5-6 bars |total weight : 5400 kg |Composition |CN cmmand NUM 760 |

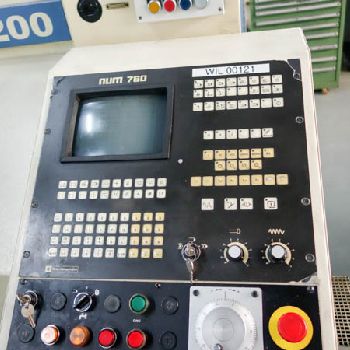

| Technical Specifications: | Type of CNC: CN cmmand NUM 760 X-axis: 470.0 mm Z-axis: 185.0 mm Spindle taper: 4 DIN 55021 Turning speed: 6000 rpm Spindle motor power: 7.7 kW Tailstock: no Bar feeder: yes Length x width x height: - × - × - Weight: 5400.0 kg State: good At local norms: yes Status: visible |
