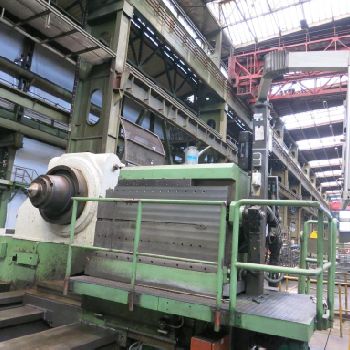

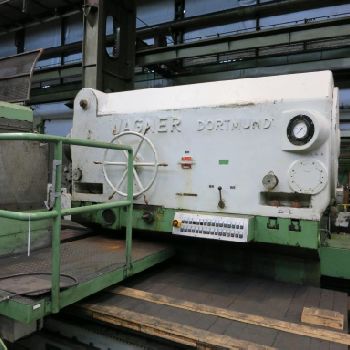

WAGNER D1500-15IV-100 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | CNC Lathes |
| Manufacturer: | Wagner |
| Model: | D1500-15IV-100 |
| Year of Make: | 2008 |
| Description: | Retrofit 2008 |Control Siemens 840D |Centre distance (mm) 21200 |Max swing over bed (mm) 3050 |Max swing over cross slide (mm) 2500 |R.P.M. 0,236 - 60 |kW 200 |Volts 400V |Cycles 50 |4-Jaw face plate, 3.000 mm |4-Jaw face plate, 2.000 mm, 330 mm thickness |Work rest roller type, 680 mm |2x Steady rest roller type , 750 mm |2x Steady rest roller type, 1.200 mm |Follow rest, 2.000 mm |Boring bar 450 x 10.300 mm |Boring bar 650 x 11.100 mm |Rollenbock |Rollenbock with adaptor |
| Technical Specifications: | Turning length: 21200.0 mm Ø above the bed: 3050.0 mm Ø above transversing slide: 2500.0 mm Length between centers: 21200.0 mm Type of CNC: Siemens 840D Turning speed: 60 rpm Spindle motor power: 200.0 kW Tailstock: no Bar feeder: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
