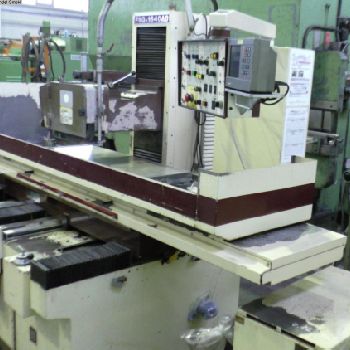

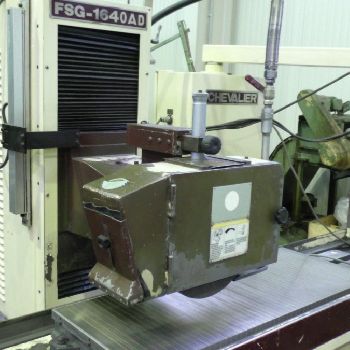

CHEVALIER FSG 1640 AD Surface grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Surface Grinding Machines |
| Manufacturer: | Chevalier |
| Model: | FSG 1640 AD |
| Year of Make: | 1993 |
| Description: | Machine details |Category Surface Grinding Machine - Horizontal |Make CHEVALIER |Type FSG 1640 AD |Year of construction 1993 |Control conventional |Country of origin Taiwan |Delivery time immediately|Technical details |Grinding length 1015 mm |Grinding width 405 mm |Workpiece height 445 mm |Grinding height 445 mm |Table clamping surface 1000 x 400 mm |Table longitudinal movement 1050 mm |Table speed - continuous - 5 - 25 m / min |Grinding spindle speed 1450 rpm |Grinding motor 3.7 kW |Grinding wheel dimensions 355 x 50 x 127 mm |Transverse movement 305 mm |Crossfeed automatically 3 - 50 mm / stroke |Vertical delivery 0,001 - 0,04 mm / stroke |Fine feed 0.001 / 0.002 mm |Total power requirement 7.4 kW|with autom. Delivery - |Magnetic plate 1000 x 400 mm, grinding wheel with flange, |various grinding wheels, digital on 2 axes HEIDENHAIN, |Puller, wet grinder with paper band filter |
| Technical Specifications: | Table length: 1000.0 mm Table width: 400.0 mm Manual: Yes CNC: Yes CNC type: HEIDENHAIN Wheel diameter: 355.0 mm Wheel width: 50.0 mm Wheel bore: 127.0 mm Max. wheel speed: 1450 rpm Power: 3.7 kW Length x width x height: 3150.0 mm × 1750.0 mm × 2000.0 mm Weight: 3500.0 kg State: good At local norms: --------- Status: visible |
