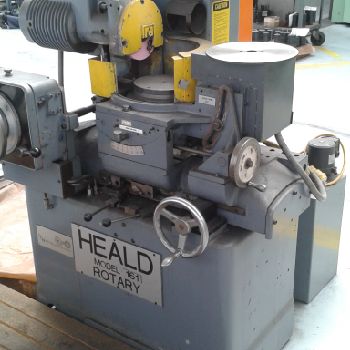

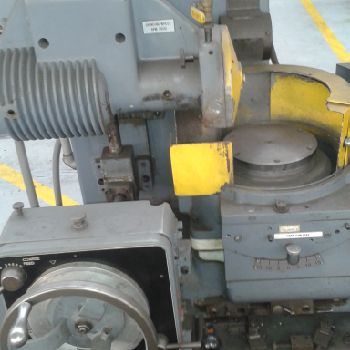

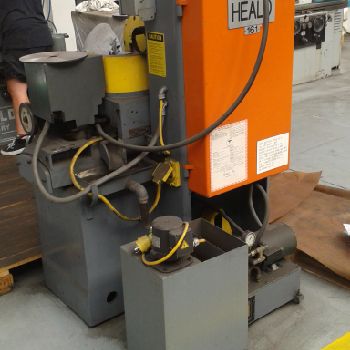

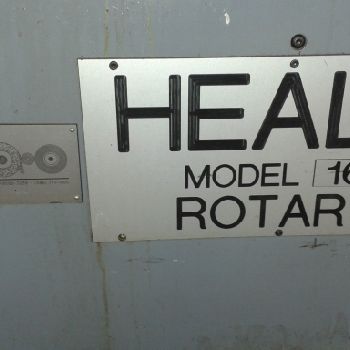

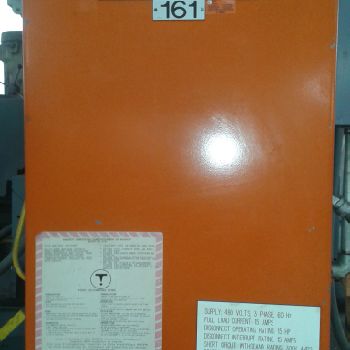

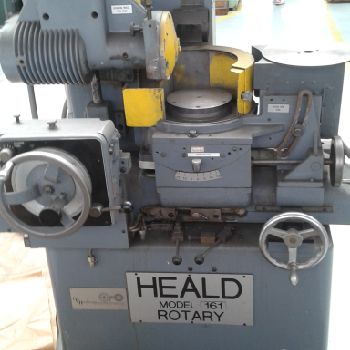

Rotary grinder HEALD 161
$ 30,963
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Surface Grinding Machines |
| Manufacturer: | Heald |
| Model: | Heald 161 |
| Description: | 161 HEALD ROTARY SURFACE GRINDING MACHINE S/N 38576 |Chuck face diameter................................ 8" |Chuck magnetic diameter............................ 8 |Swing inside coolant pan, maximum.................. 12 1/2 |Standard wheel size................................ 7 x 1 |Distance from top to chuck to center |of grinding spindle maximum, minimum............... 10, 2 5/8 |Maximum angle convex, concave................. 15 deg., 15 deg. |Table travel....................................... 6 1/4 |Grinding stroke maximum............................ 4 |SPEEDS & FEEDS |Chuck speed........................................ 350 RPM |Wheel speed........................................ 3600 RPM |Table speed with automatic reciprocation........... 1-10 FPM |One turn of feed hand wheel........................ .05 |Power feed adjustment......................... .0001 to .0005 |DRIVE |Wheel spindle motor...................... 5 HP-3460 RPM 230/460 |Chuck drive motor .... |
| Technical Specifications: | Table length: 203.2 mm Table width: 203.2 mm Manual: Yes CNC: No Wheel diameter: 177.8 mm Wheel width: 25.4 mm Wheel bore: 25.4 mm Max. wheel speed: 3600 rpm Power: 3.7 kW Length x width x height: 1524.0 mm × 1524.0 mm × 2286.0 mm Weight: 1814.9 kg State: good At local norms: --------- Status: under power |
