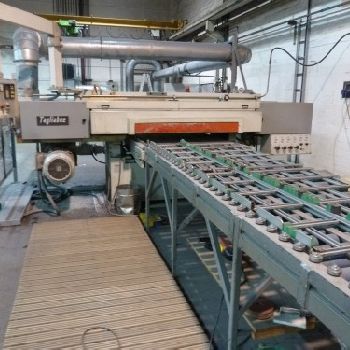

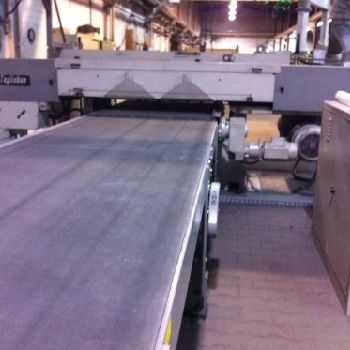

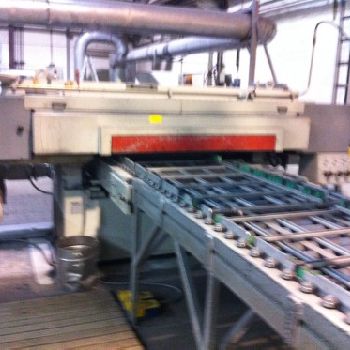

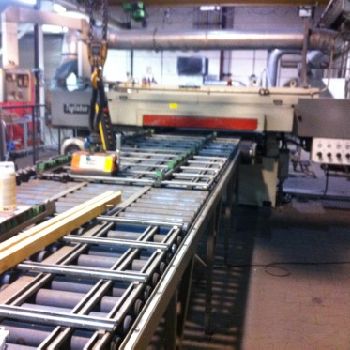

Tagliabue TT-3-1300 Surface grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Surface Grinding Machines |
| Manufacturer: | Tagliabue |
| Model: | TT-3-1300 |
| Year of Make: | 1996 |

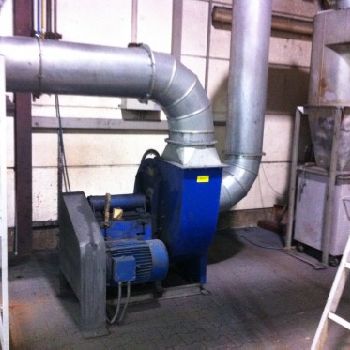

| Description: | Year 1996|Technical specifications: |Max. Grinding belt width: 1300 mm |Max. Passage: 1300 mm |Grinding range: 4 - 350 mm |continuous belt speed: 6 - 12 m / min. |variable feed rate d. Conveyor belt: 5.0 - 25 m / min. |Sanding belt size: 8500 x 150 mm |Slat strip size: 6530 x 140 mm: |Broadband feed table: 5000 x 1200 mm |Extraction roller table: 4000 x 1400 mm |Air consumption: 1400 l / min. |Air extraction: 9000 m / h |Power of the vacuum pump: 7.5 kW |Power of the belt motor: 3.0 kW |Total installed capacity: 30 kW |Weight approx: 6000 kg |Machine width: 5000 mm |With |- CNC control Fabr Syel |- Vacuum material tension |- Extraction and filtration system make Ticnomac, 13 kW, year 96 |very little used, in very good condition |
| Technical Specifications: | Table length: 5000.0 mm Table width: 1200.0 mm Manual: No CNC: Yes CNC type: Fabr Syel Power: 30.0 kW Length x width x height: - × 8000.0 mm × - Weight: 6000.0 kg State: good At local norms: --------- |
