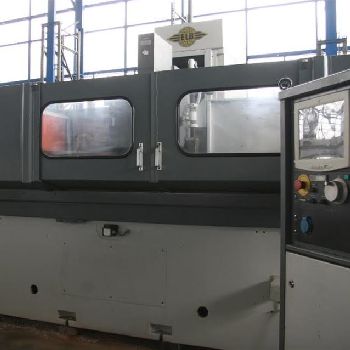

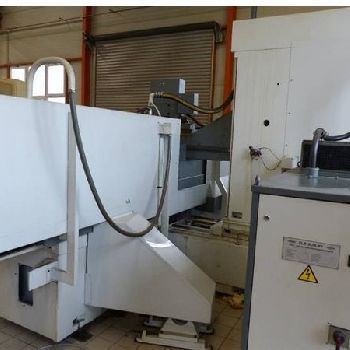

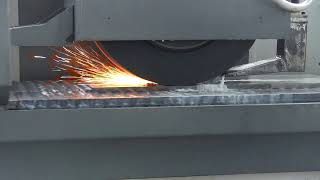

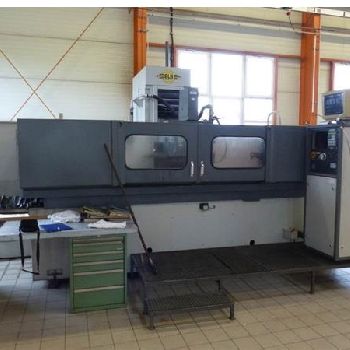

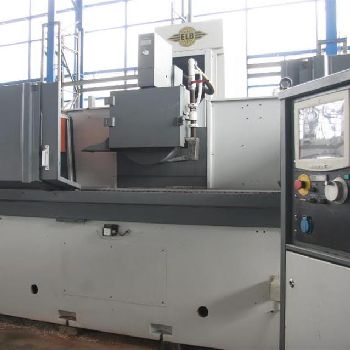

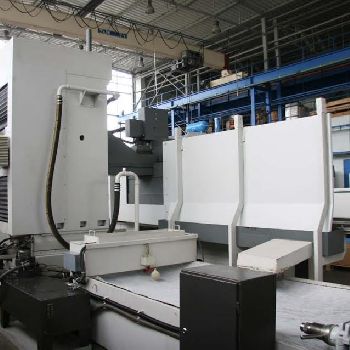

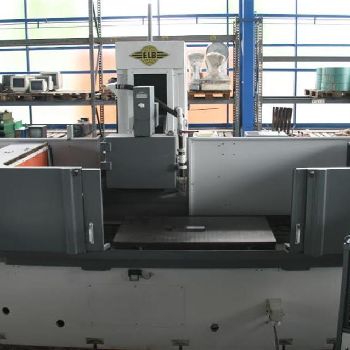

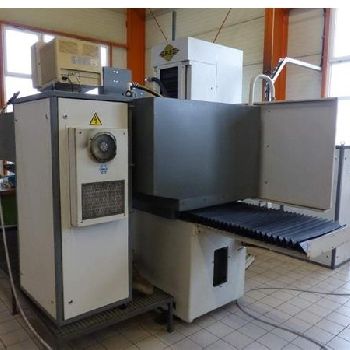

ELB SWDE 15 Unicon Surface Grinding Machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Surface Grinding Machines |
| Manufacturer: | ELB-SCHLIFF |
| Model: | SWDE 15 Unicon |
| Year of Make: | 1987 |
| Description: | Precision surface and profile grinding machine |- with DRO system incremental |- central lubrication |- coolant device with supply |- coolant system with belt separator for grinding sludge (filter belt fleece)|techn. details: |- tranverse feed per stroke 0,2 - 150mm; adjustment with 0,001mm |- Protocol for grinding accuracy is available. |- Screen has been replaced.|Can be demonstrated under power.|Technical Details: |- grinding length: |1500 mm |- grinding width: |750 mm |- workpiece height: |600 mm |- control: |Unicon |- feed: |0,001 - 2,0 mm |- rapid traverse cross: |2500 mm/min |- feed: |z=transversal:2-250 mm/min |- feed: |y=vertical.:3-375 mm/min |- interface: |RS 422 |- table surface area: |L:2000xB:740 mm |- magnetic plate size: |1500x750 mm |- table load: |1,5 t |- spindle cone: |90 (1:5) mm |- dimensions of grinding wheel: |650x160x304,4 mm |- grinding spindle drive: |37,5 - 75 kW |- total power requirement: |110 kW |- weight of the ma |
| Technical Specifications: | Table length: 2000.0 mm Table width: 740.0 mm CNC: Yes CNC type: Unicon Max piece weight: 1500.0 kg Power: 110.0 kW Length x width x height: 6800.0 mm × 3900.0 mm × 3800.0 mm Weight: 18000.0 kg State: in working conditions At local norms: --------- Status: under power |
