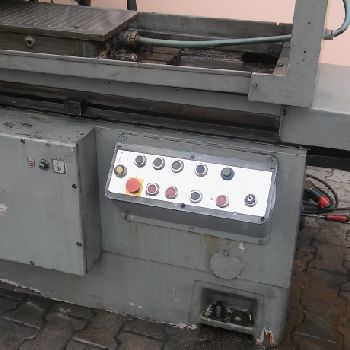

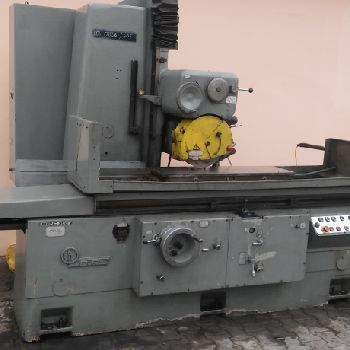

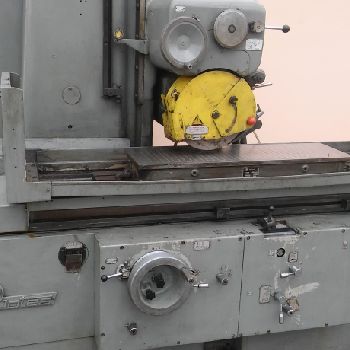

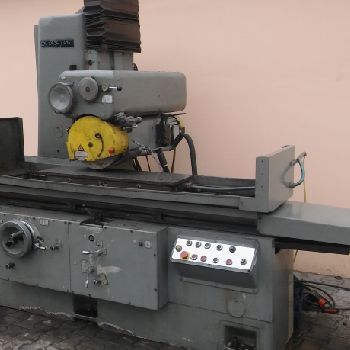

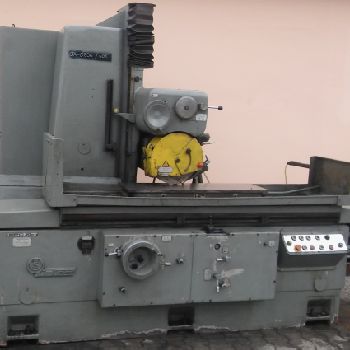

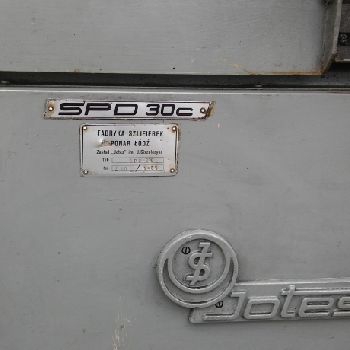

Jotes SPD-30C Surface grinding machine
$ 7,410
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Surface Grinding Machines |
| Manufacturer: | Jotes |
| Model: | SPD-30C |
| Description: | Good morning,|we offer for sale SAND GRINDERS, type: SPD-30C (screw pump), manufactured by JOTES d.|The machine is in good technical condition, efficient - complete. We have a set. DTR.|Technical data:|the largest 1000mm grinding length |the largest 300mm grinding width |maximum elevation of the spindle axis over the 575mm table |minimal elevation of the spindle axis over the table 125mm |Table advance range infinitely 0.5 ... 20m / min |lateral movement of the 370mm grinding wheel |wheel diameter 350mm |grinding wheel width 63mm |hole diameter 127mm |power of the 7.5 kW wheel drive motor |power of the 4kW oil pump motor |Overall dimensions: length 3740mm, width 2080mm, height 2260mm |machine weight 5000kg |
| Technical Specifications: | Table length: 1000.0 mm Table width: 300.0 mm Manual: Yes Wheel diameter: 350.0 mm Wheel width: 63.0 mm Wheel bore: 127.0 mm Length x width x height: 3740.0 mm × 2080.0 mm × 2260.0 mm Weight: 5000.0 kg State: good At local norms: --------- Status: visible but unplugged |
