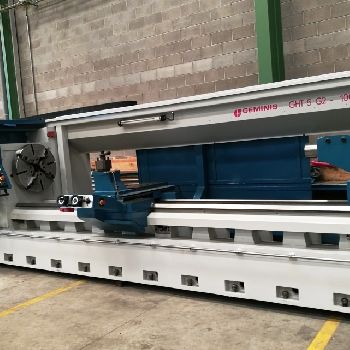

Geminis GHT5 G2 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | CNC Lathes |
| Manufacturer: | Geminis |
| Model: | GHT5 G2 |
| Year of Make: | 2009 |

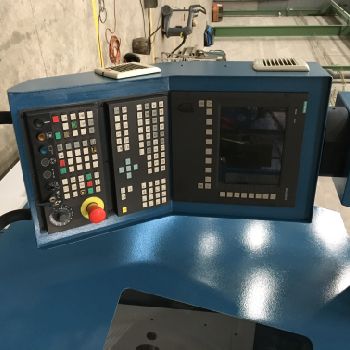

| Description: | GEMINI GHT5 G2. |Distance between centers: 4000 mm. |CNC: Siemens 810D. |Diameter above the bed: 1000 mm. |Diameter above transversing slide: 680 mm. |Height of centers: 500 mm. |Width of the bed: 550 mm. |1st speed range: 0-175 rpm. |2nd speed range: 0-1400 rpm. |Engine: 30 kW. |Rapid movement: 8000 mm / min. |Tailstock diameter: 140 mm. |Shank diameter: 80 mm. |Spindle bore: 104 mm. |Year of manufacturing: 2009.|Equipped with: | Manual turret PARAT RD4 | Cooling 6 Bars | Chip conveyor |
| Technical Specifications: | Ø above the bed: 1000.0 mm Ø above transversing slide: 680.0 mm Length between centers: 4000.0 mm Type of CNC: Siemens 810D Spindle bore: 104.0 mm Number of turrets: 1.0 Turning speed: 1400 rpm Spindle motor power: 30.0 kW Tailstock: yes Bar feeder: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: in production |
