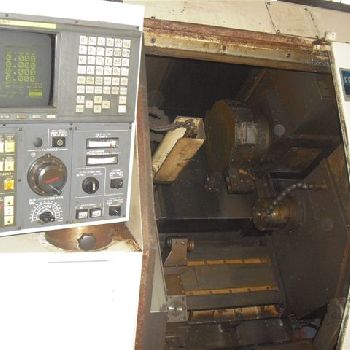

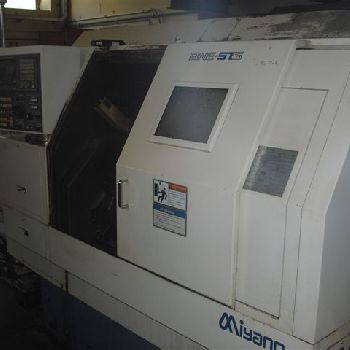

Miyano BNE 51 S cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | CNC Lathes |
| Manufacturer: | Miyano |
| Model: | BNE 51 S |
| Year of Make: | 2000 |
| Description: | Description technical data |Miyano GNI 51 S unit |Machine dimensions length x width x height 2.855 x 2,070 x 2.083 mm |Height 1, 170 mm spindle Center floor |Weight |Air demand |Total connected load |Hedging |6,800 |5 |AC200V/220/50/60 HZ/43/150|kg |bar |kVA |150 A|Spindle material outlet 51 mm |Material flow sub spindle 42-26 mm |Collet chucks for main spindle optional DIN 177E/173E |DIN A2-6 spindle nose |Collet Chuck sub spindle DIN 173 E |Speed range for both spindles 170 4.000 rpm |Power for main spindle 11 / 15 kW |(30 min / 100% ED) |Drive performance for sub spindle C axis version 5.5 / 3.7 kW|Turret number of turret 2 |Upper turret stations 12 |Lower turret stations 10 |Switching time station to station 0.35 sec.|Traverse paths X 1 axis 150 mm of Z1 axis 380 mm |X 2 axis 115 mm |Z2 axis 125 mm |B axis 450 mm|Tools number of driven tools for upper turret 6 |Number of driven tools for lower turret 5 |Power for tools in the upper turret AC 2.5 KW | |
| Technical Specifications: | X-axis: 150.0 mm Z-axis: 380.0 mm Number of turrets: 2.0 Number of tools on turret: 12.0 Number of rotating tools: 11.0 Tailstock: no Bar feeder: no Length x width x height: 2070.0 mm × 2855.0 mm × 2083.0 mm Weight: - State: good At local norms: yes Status: visible |
