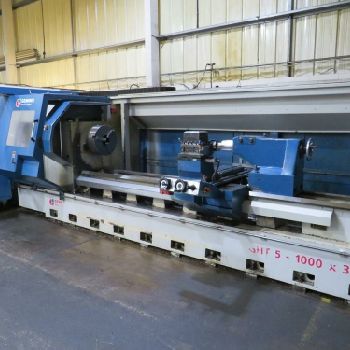

Geminis GHT5-G2-1000x3000 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | CNC Lathes |
| Manufacturer: | Geminis |
| Model: | GHT5-G2-1000x3000 |
| Year of Make: | 2005 |

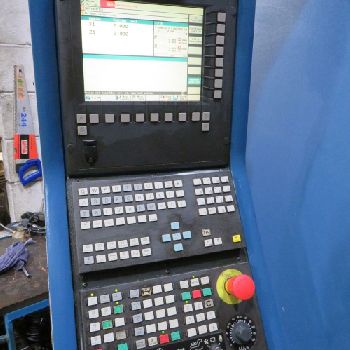

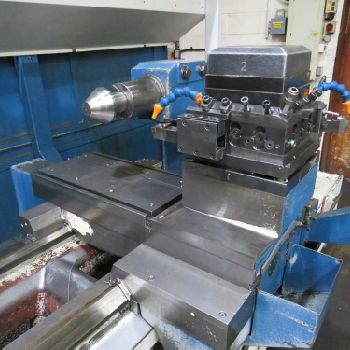

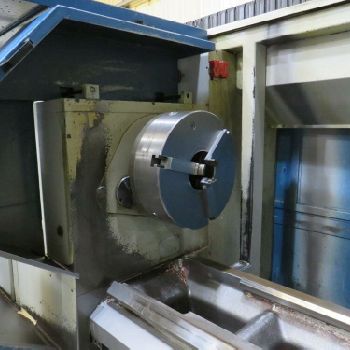

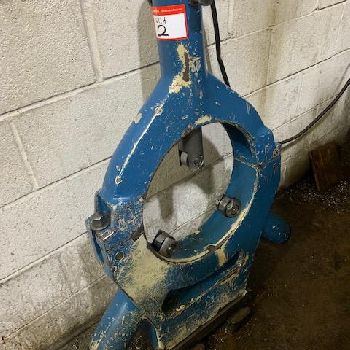

| Description: | Brand: GEMINI |Model: GHT5-G2-1000x3000 |Manufacturing Year: 2005 |Distance between centers: 3000 mm |Diameter on transverse carriage: 680 mm |Diameter on bed: 1000 mm |Main motor power: S1 / S6 30/37 kW |Maximum torque: 4500 / 5.625 Nm |CNC: Siemens 840D |Bed width: 550 mm |Height of points from the flat guide: 500 mm |Approximate weight: 9500 kg |Piece weight between centers (1 window): 6200 kg |Piece weight between centers: 4800 kg |Hole diameter of main shaft: 104 mm |Main shaft nose: DIN 55026-11 |Shaft diameter in the front bearing: 150 mm |Shaft diameter of tailstock 140 mm |Shaft course: 300 mm |4 speed ranges |- Speed I range: 0-175rpm |- Speed II range: 0-350rpm |- Speed III range: 0-700 rpm |- Speed IV range: 0-1,400 rpm |Rapid displacement of the longitudinal carriage: 8 m / min |Fast travel of the transverse carriage: 8 m / min|3 claw plate |Fixed window |Rotating point |Sauter 4-position automatic turret. |Chip extractor |
| Technical Specifications: | Ø above the bed: 1000.0 mm Ø above transversing slide: 680.0 mm Length between centers: 3000.0 mm Type of CNC: Siemens 840D Max workpiece weight: 4800.0 kg Spindle bore: 104.0 mm Turning speed: 1400 rpm Spindle motor power: 37.0 kW Tailstock: no Bar feeder: no Length x width x height: - × - × - Weight: 9500.0 kg State: good At local norms: --------- |
