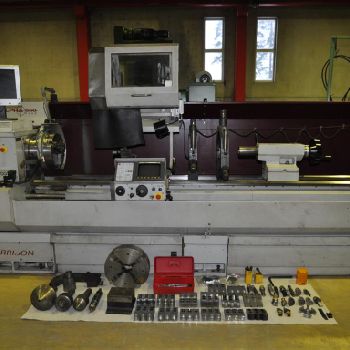

Used Harrison Alpa 550 Cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Sweden |
| Category: | CNC Lathes |
| Manufacturer: | Harrison |
| Model: | Alpa 550 |
| Year of Make: | 1998 |

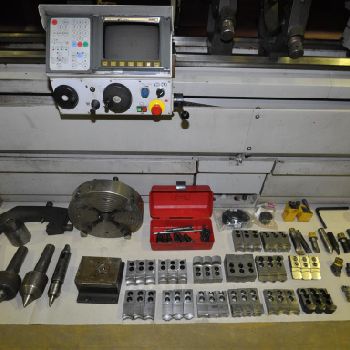

| Description: | SMW Autoblock air chuck, |2pcs fixed & 1 pc. travelling |steady rest|Center height 275 mm |Turning diameter 550 mm |Swing over crosslide 370 mm |Swing in gap 830 mm |Center distance 3000 mm |Spindle speed 15-1800 rpm |Spindle bore 104 mm |Feeds 0,03-0,4 mm/r |Rapid traverse 6 m/min |Motor 11 kW |Manufacturing year 1998 |Length 5200 mm |Width 1111 mm |Height 1910 mm |Weight 3850 kg |
| Technical Specifications: | Turning Ø: 550.0 mm Ø above transversing slide: 370.0 mm Length between centers: 3000.0 mm Turning speed: 1800 rpm Spindle motor power: 11.0 kW Tailstock: no Bar feeder: no Length x width x height: 5200.0 mm × 1111.0 mm × 1910.0 mm Weight: 3850.0 kg State: good At local norms: --------- Status: under power |
