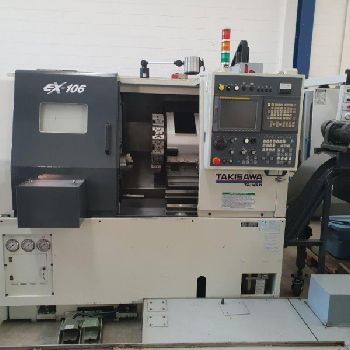

Used Takisawa ex 106 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | CNC Lathes |
| Manufacturer: | Takisawa |
| Model: | ex 106 |

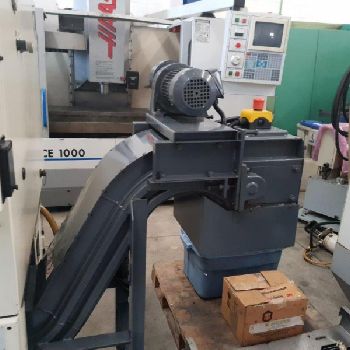

| Description: | The TAKISAWA EX 106 2-axis cnc lathe with reconditioned used bar feeder is a fast, small numerical control lathe with inclined bench and roller guides, equipped with FANUC 21i-TB cnc with Manual Guide, year of construction 2007, according to "CE standards . Totally overhauled (new spindle line and Z axis), it is also equipped with both a chuck and a caliper assembly and a LNS super Hydrobar bar feeder. Main features: |vel. spindle 60-6000 rpm, |diam. 360 mm turning, |turning length 325 mm, |bar passage 43 mm, |pot. 7.5 Kw motor, |tool turret n. 12 stations, |X axis travel Y 280 x 325, |Machine weight: about 3500 KG Complete the equipment, the tailstock with a sleeve in the cycle, the belt shavings evacuator, the tool presetting, the hand piece-holder and the tool-holder kit. |
| Technical Specifications: | Turning length: 325.0 mm Turning Ø: 360.0 mm Type of CNC: FANUC 21i-TB X-axis: 325.0 mm Z-axis: 280.0 mm Turning speed: 6000 rpm Spindle motor power: 7.5 kW Tailstock: no Bar feeder: yes Length x width x height: - × - × - Weight: 3500.0 kg State: revised At local norms: yes Status: visible |
