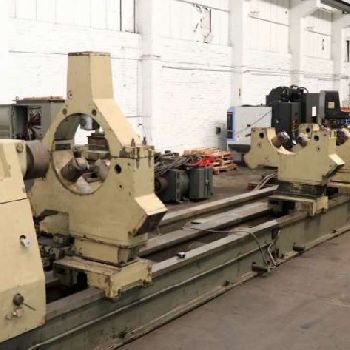

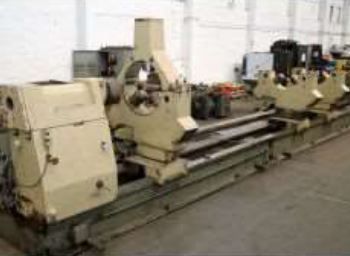

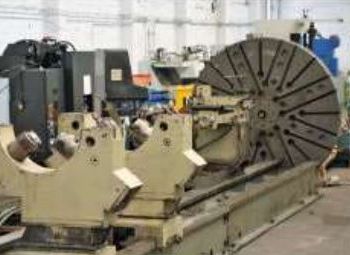

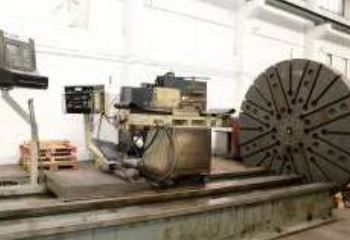

WMW Niles DP3 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | WMW Niles |
| Model: | DP3 |
| Year of Make: | 1979 |

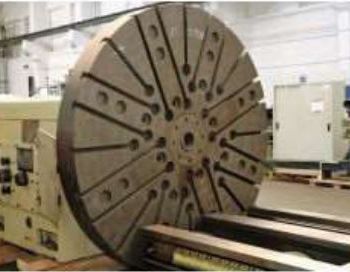

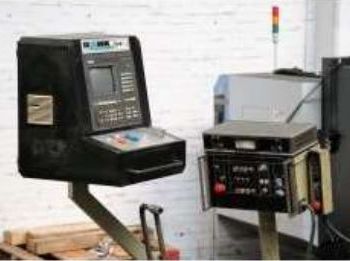

| Description: | Turning length: 200000 mm |Turning diameter over bed: 2350 |Turning diameter over support: 1600 |Workpiece weight: 25000 kg |Faceplate diameter: 2500 mm |Spindle bore: 150 mm |Workpiece diameter: 2500 mm |Control: Siemens Sinumerik 810 T |Speed range: 0.45 - 140 rpm |Feed range: 0.009 - 25 mm / rev |Total drive power: 60 kW |Weight approx .: 64000 kg |Dimensions (LxWxH) 25000 x 2600 x 2600 |
| Technical Specifications: | Turning length: 20000.0 mm Ø above the bed: 2350.0 mm Ø above transversing slide: 1600.0 mm Type of CNC: Siemens Sinumerik 810 T Max workpiece weight: 25000.0 kg Spindle bore: 150.0 mm Tailstock: no Bar feeder: no Length x width x height: 25000.0 mm × 2600.0 mm × 2600.0 mm Weight: 64000.0 kg State: good At local norms: --------- |
