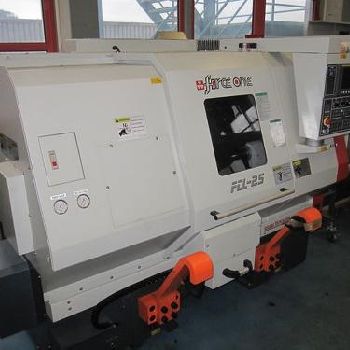

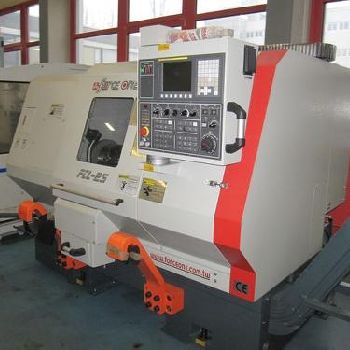

FORCE ONE FCL 25 Cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Switzerland |
| Category: | CNC Lathes |
| Manufacturer: | Force |
| Model: | FCL 25 |
| Year of Make: | 2012 |
| Description: | Distance between centres 690 mm |Swing over bed 600 mm |Taper in spindle A2-6" |Spindle hole 77 mm |Turning diameter 300 mm |Bar diameter 65 mm |Clamping chuck diameter 254 mm |Carriage: |Longitudinal travel (Z-axis) 700 mm |cross travel (x axis) 180 mm |Turret slide: number 1 |Number of positions turret 1 12 |Driven tools turret 1 12 |Spindle speeds 25 - 4000 rpm |Inner cone diameter 40 mm |Spindle speeds: |stepless |from 25 rpm |up to 3500 rpm |Rapid traverse: 30 m/min |Spindle motor 11 / 15 kW |Machine’s weight about 5342 kg |Overall dimensions machine: |Length 4000 mm |Width 2100 mm |Height 2000 mm |Various accessories: |Tailstock |Coolant system |C axis 360’000 |Chip conveyor |

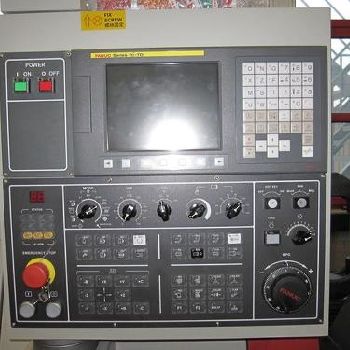

| Technical Specifications: | Turning Ø: 300.0 mm Ø above the bed: 600.0 mm Length between centers: 690.0 mm Type of CNC: FANUC 0i-TD X-axis: 180.0 mm Z-axis: 700.0 mm Spindle taper: A2-6" Spindle bore: 77.0 mm Number of turrets: 1.0 Number of tools on turret: 12.0 Turning speed: 4000 rpm Spindle motor power: 15.0 kW Tailstock: yes Bar feeder: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
