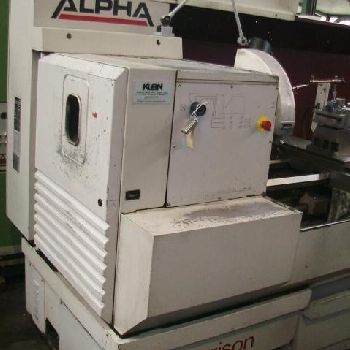

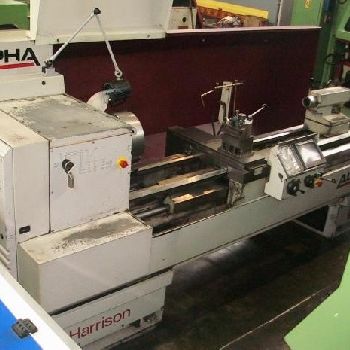

Harrison Alpha 550 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | Harrison |
| Model: | Alpha 550 |
| Year of Make: | 1996 |
| Description: | Turning diameter 554 mm |turning length 2000 mm |control GE FANUC ALPHA |Center height 280 mm |Circulation diameter max. over sliding gate 370 mm |Circumference diameter in the crank 830 mm |spindle hole 90 mm |Spindle speeds 15 - 1800 rpm |spindle nose D 1 - 8 "Camlock |spindle motor 11 kW |Feeds - longitudinal 0.03 - 0.4 mm / rev |Feed - plan 0.015 - 0.2 mm / rev |Rapid traverse - longitudinal / flat 3 / 1.5 m / min |Thread - mm pitch 14 mm |bed width 400 mm |Planschieberweg 310 mm |tailstock 95 mm |tailstock quill stroke 145 mm |Tailstock mount MK 6 |Tailstock transverse displacement from the middle position +/- 10 mm |Dimensions L x W x H 3.55 x 1.62 x 2.32 m |Total power requirement 24 kVA |Machine weight approx. 3.1 tons |- with bridge - |Accessories |3-jaw chuck 315 mm, MULTIFIX steel holder with div. inserts, |1 fixed steady rest, coolant device |
| Technical Specifications: | Turning length: 2000.0 mm Turning Ø: 554.0 mm Ø above the bed: 830.0 mm Ø above transversing slide: 370.0 mm Type of CNC: Fanuc Alpha Spindle taper: D1 to D8 Spindle bore: 90.0 mm Turning speed: 1800 rpm Spindle motor power: 11.0 kW Tailstock: yes Bar feeder: no Length x width x height: 3550.0 mm × 1620.0 mm × 2320.0 mm Weight: 3100.0 kg State: good At local norms: --------- Status: visible |
